V-SYSTEM 15 Pot 3 Row Kit

  • V-SYSTEM 15 POT
1 1
$5,564.02 USD
$5,564.02 USD
Sale Sold out

Free Shipping to the Contiguous US States and most of Canada!

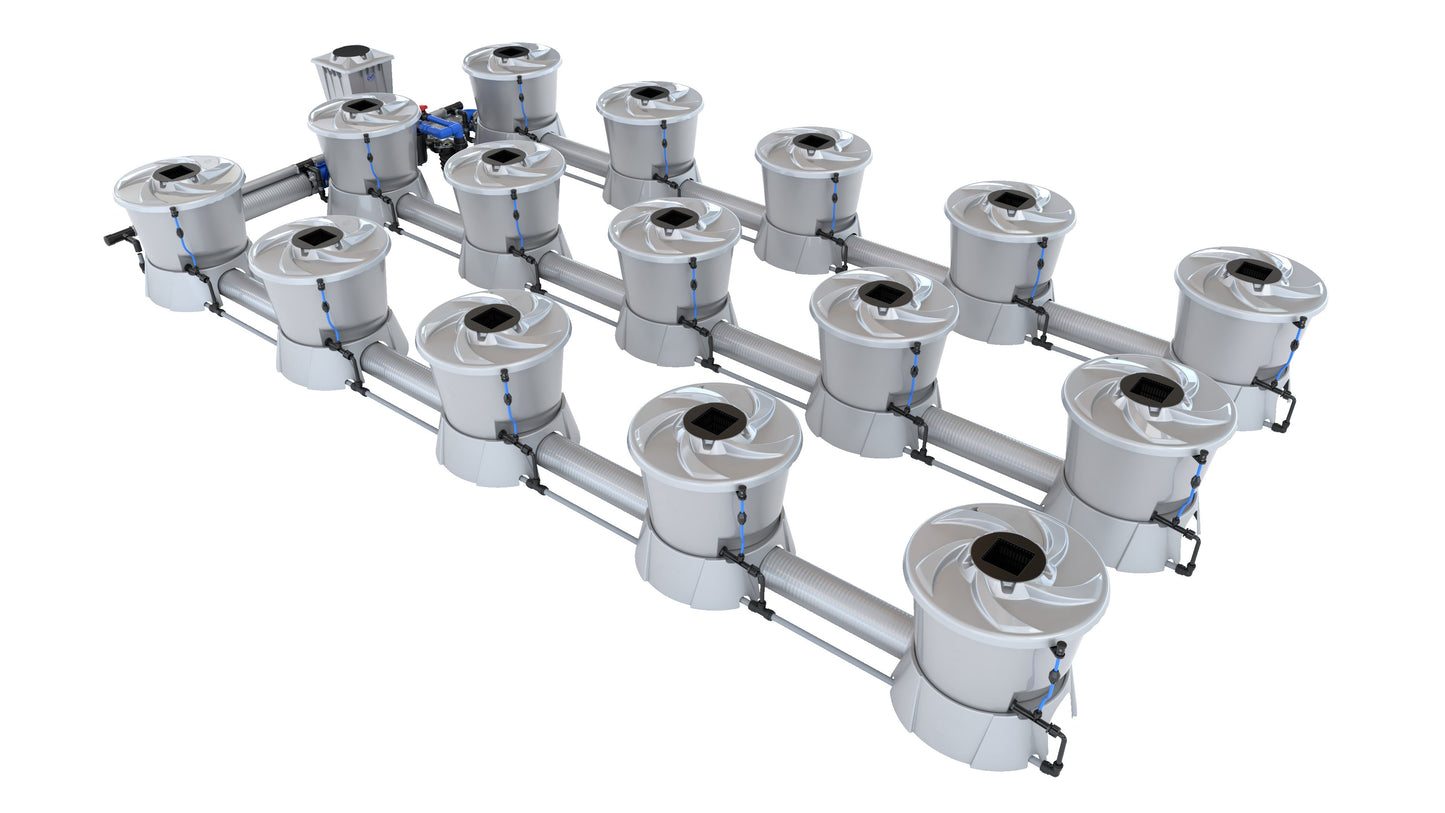

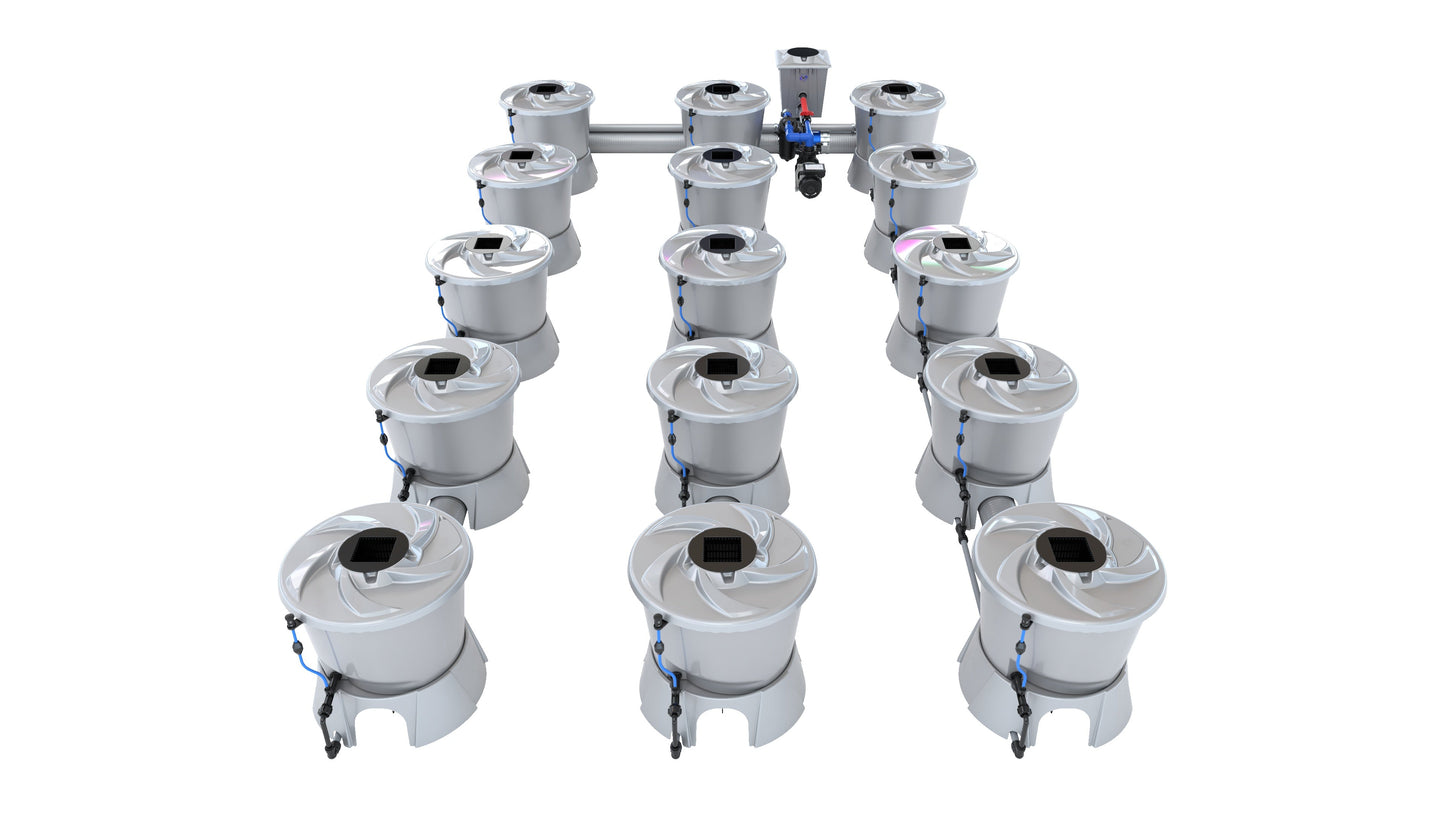

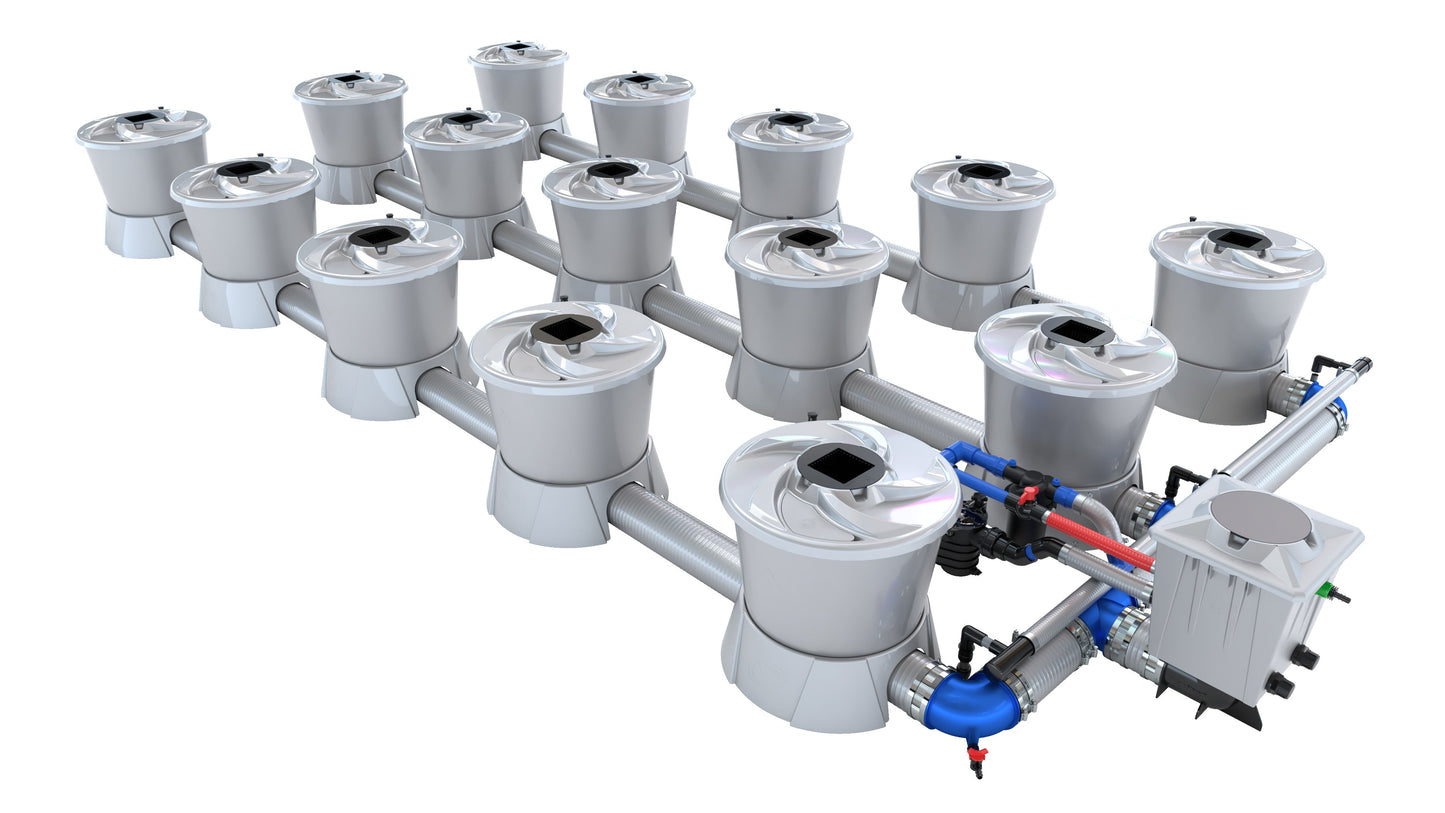

A 15-pot, 3-row V-SYSTEM kit for growing 15 massive plants.

View full details

Key V-SYSTEM Benefits:

  • Direct nutrient distribution
  • Maximum oxygen saturation
  • No air pump needed
  • No heat transferred
  • Vortex fluid motion
  • Naturally aspirated
  • Supports large plants
  • Pots and system completely drain
  • Prevents root clogging
  • Made in Britain

Key V-SYSTEM Features:

  • 15 gallon (58L) V-POT
  • Water fill line
  • Total-drainage bases
  • Venturi injectors
  • Inspection Covers
  • 5" spiral tubing
  • 5" Dual-Flow™ fittings
  • Integrated filtration
  • T304 Stainless clamps
  • Heavy-duty components
  • Push-fit feed connections
  • JET-STREAM® Vortex™ pump

V-SYSTEM 15 Pot 3 Row Kit
Technical Information

Number of pots: 15
Number of rows: 3

Kit total fluid volume: 244.6 gallons (926 L)

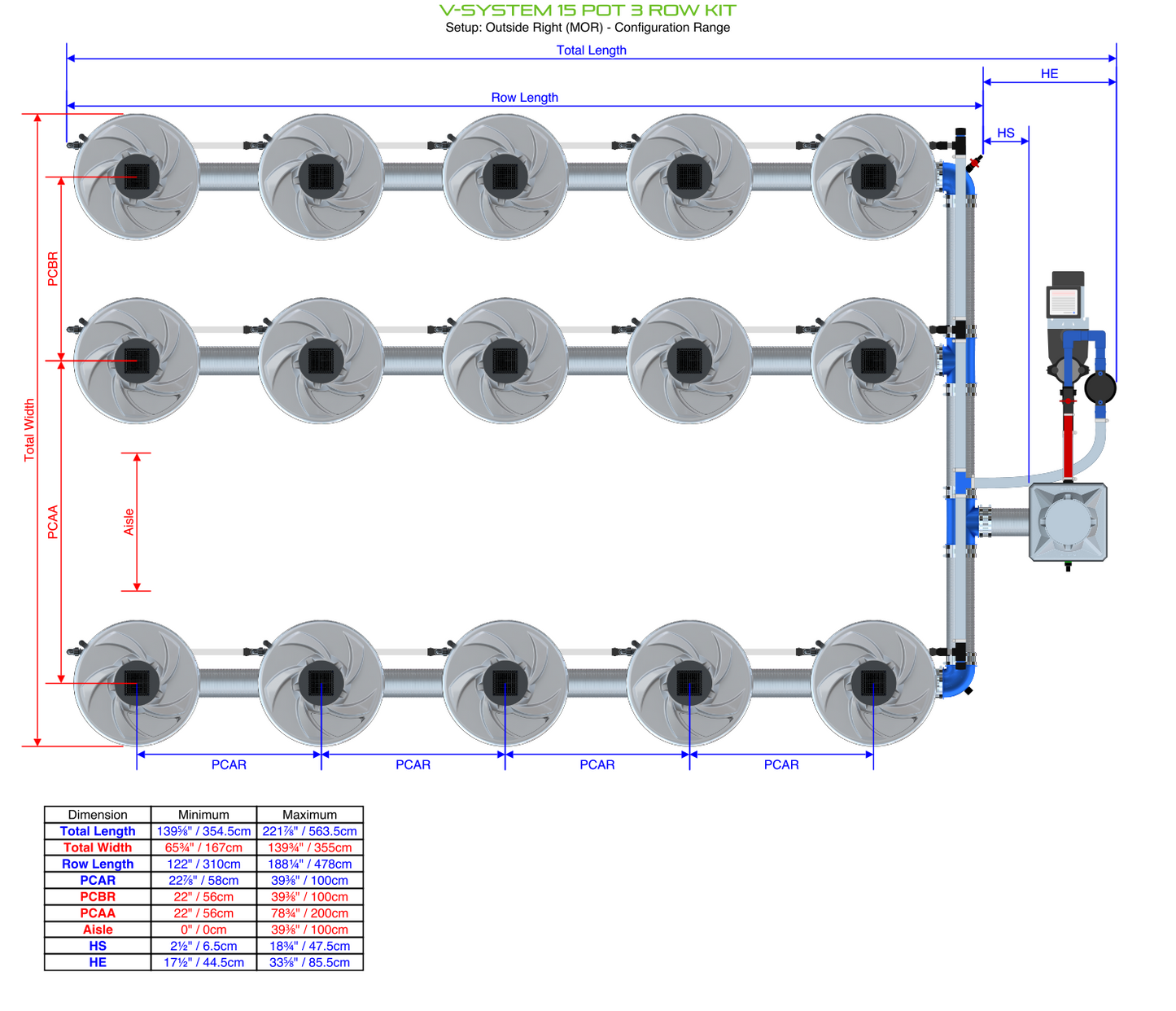

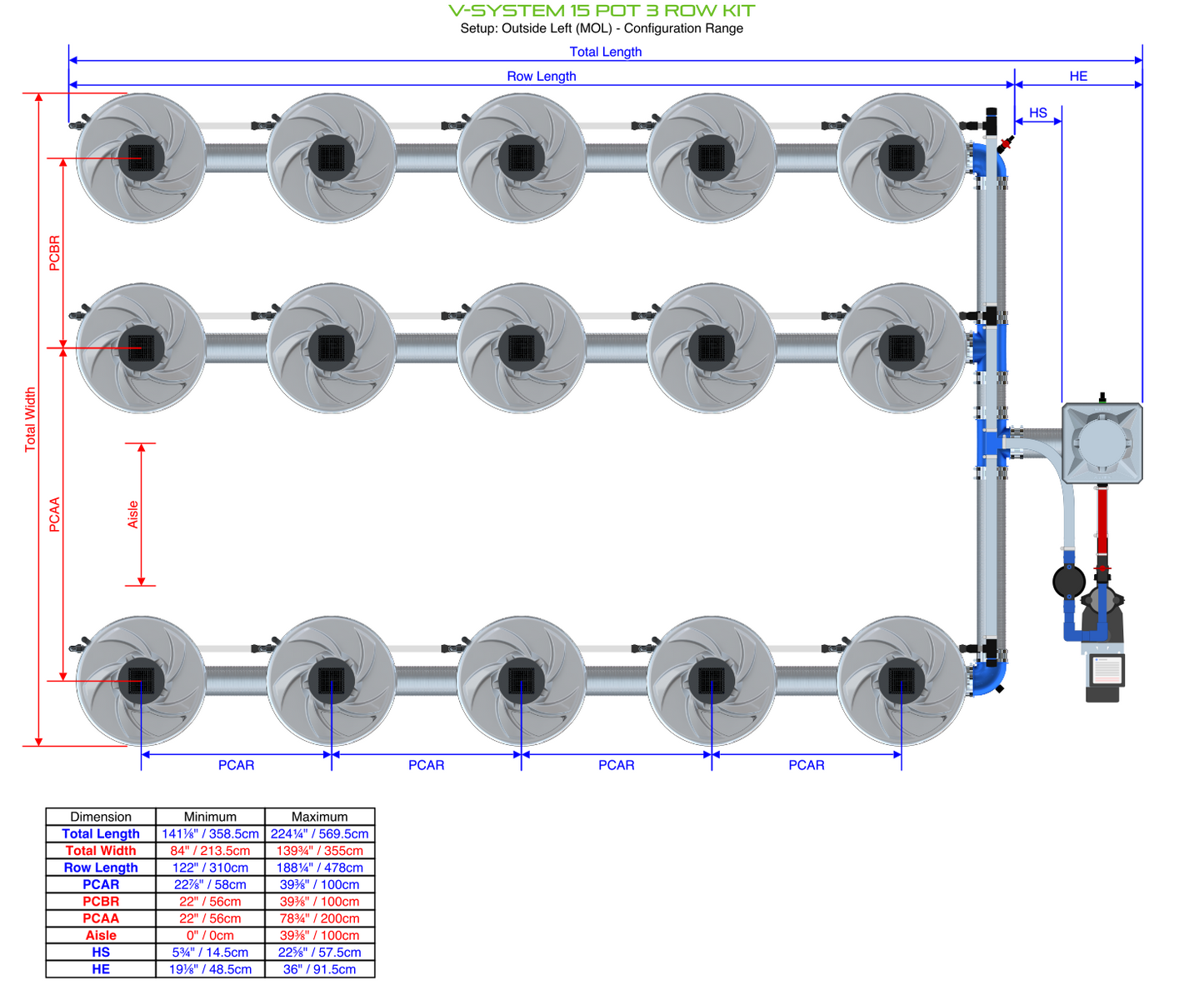

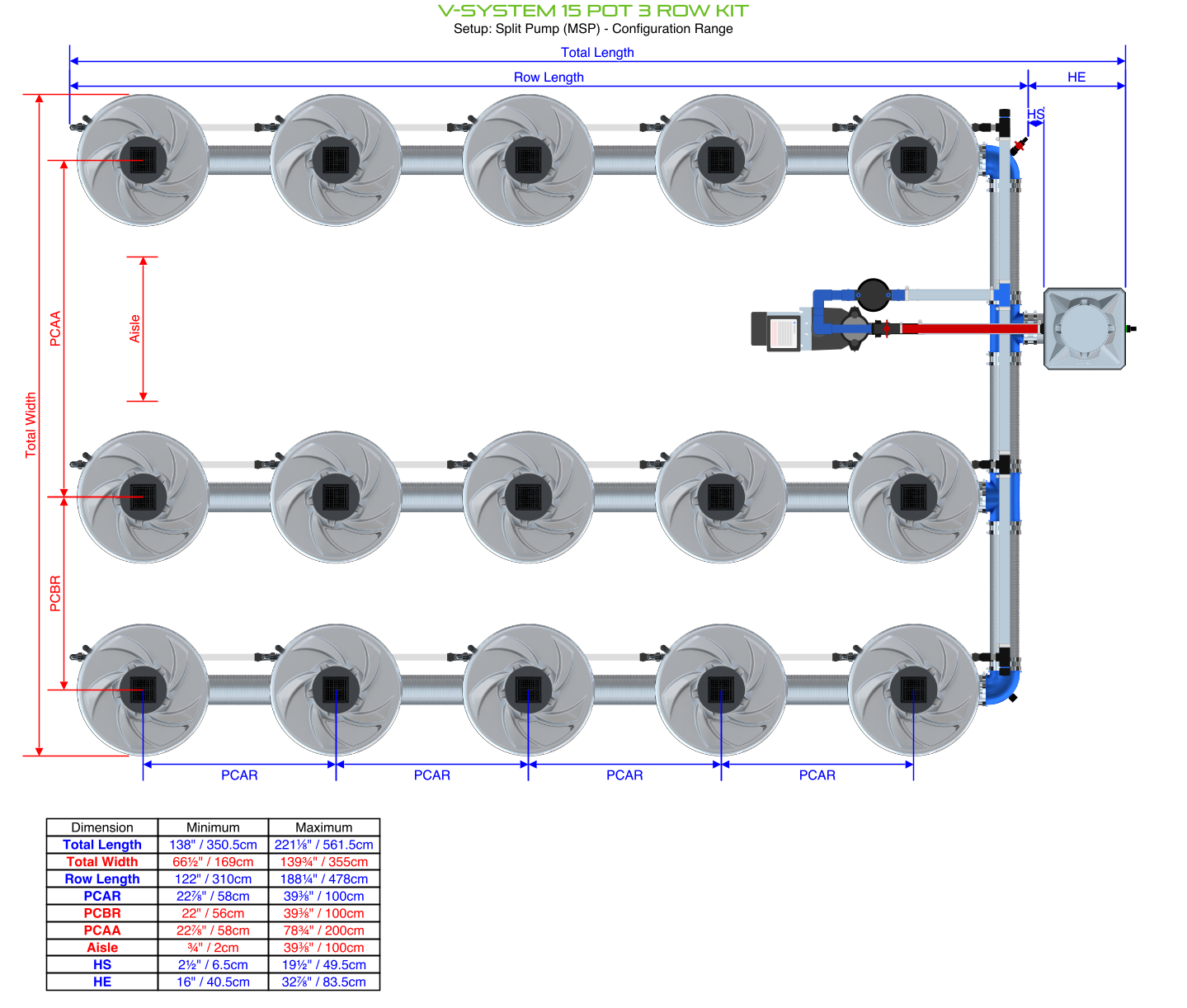

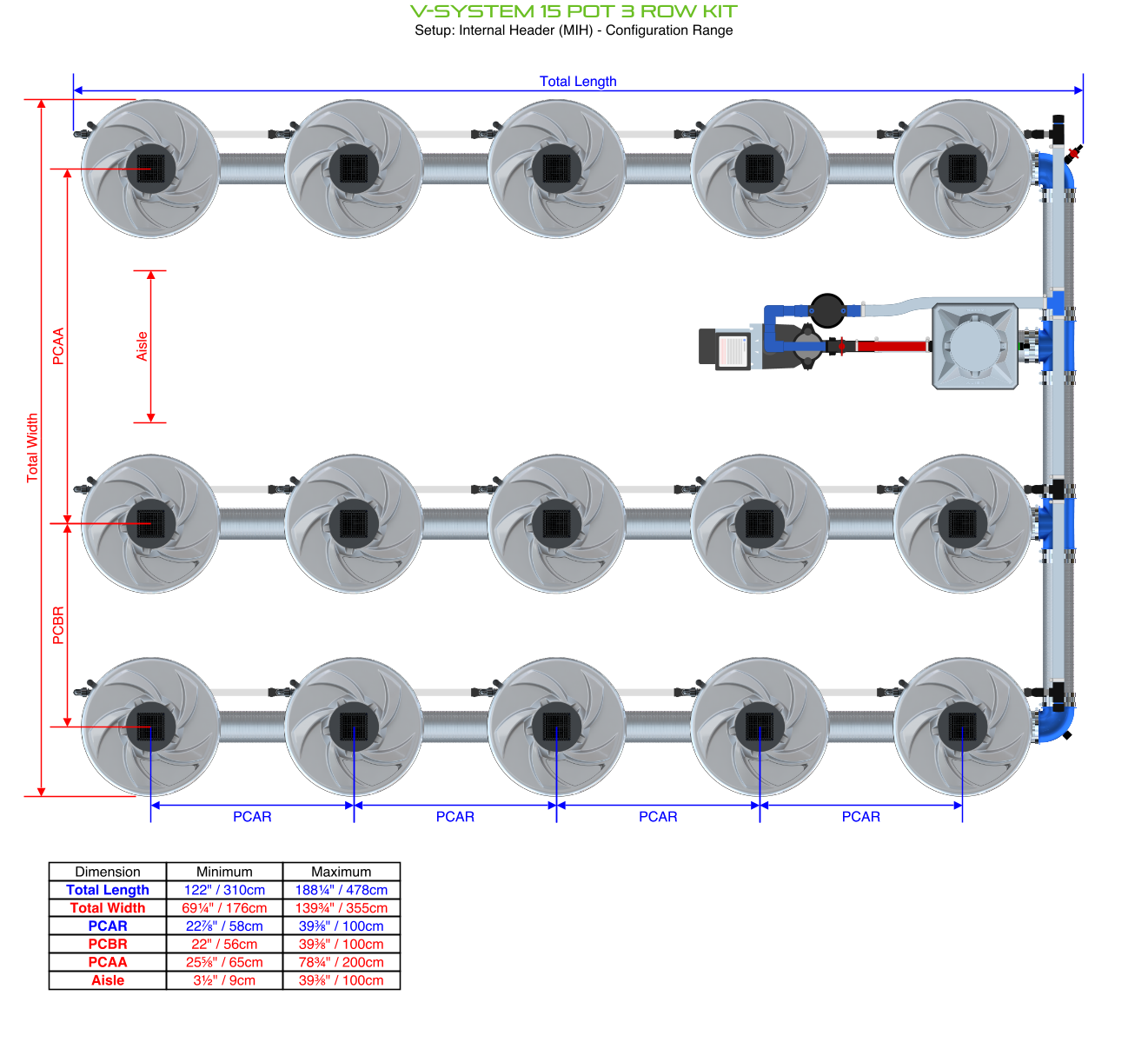

Minimum assembled size (can space pots more widely for a larger footprint):
Length: 10' 2.4" (122.4 inches / 3110 mm)
Width: 5' 9.3" (69.3 inches / 1760 mm)

Water Pump Included with the Kit:
Model: V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h
Wattage: 750 watts
Flow Rate: 3963 gal/hr (15000 L/hr)

Recommended water chiller minimum capacity: 396 gallons (1500 L)

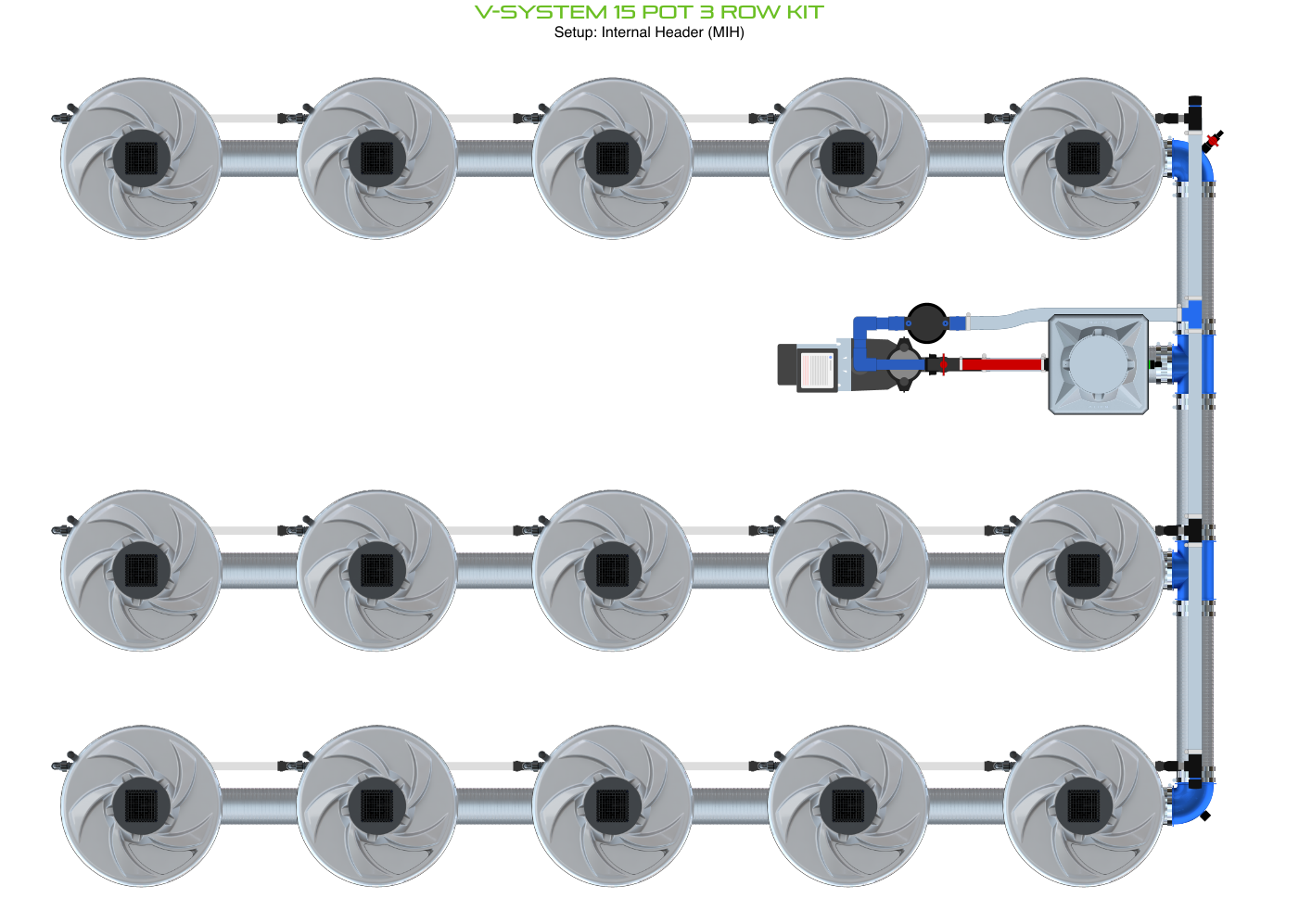

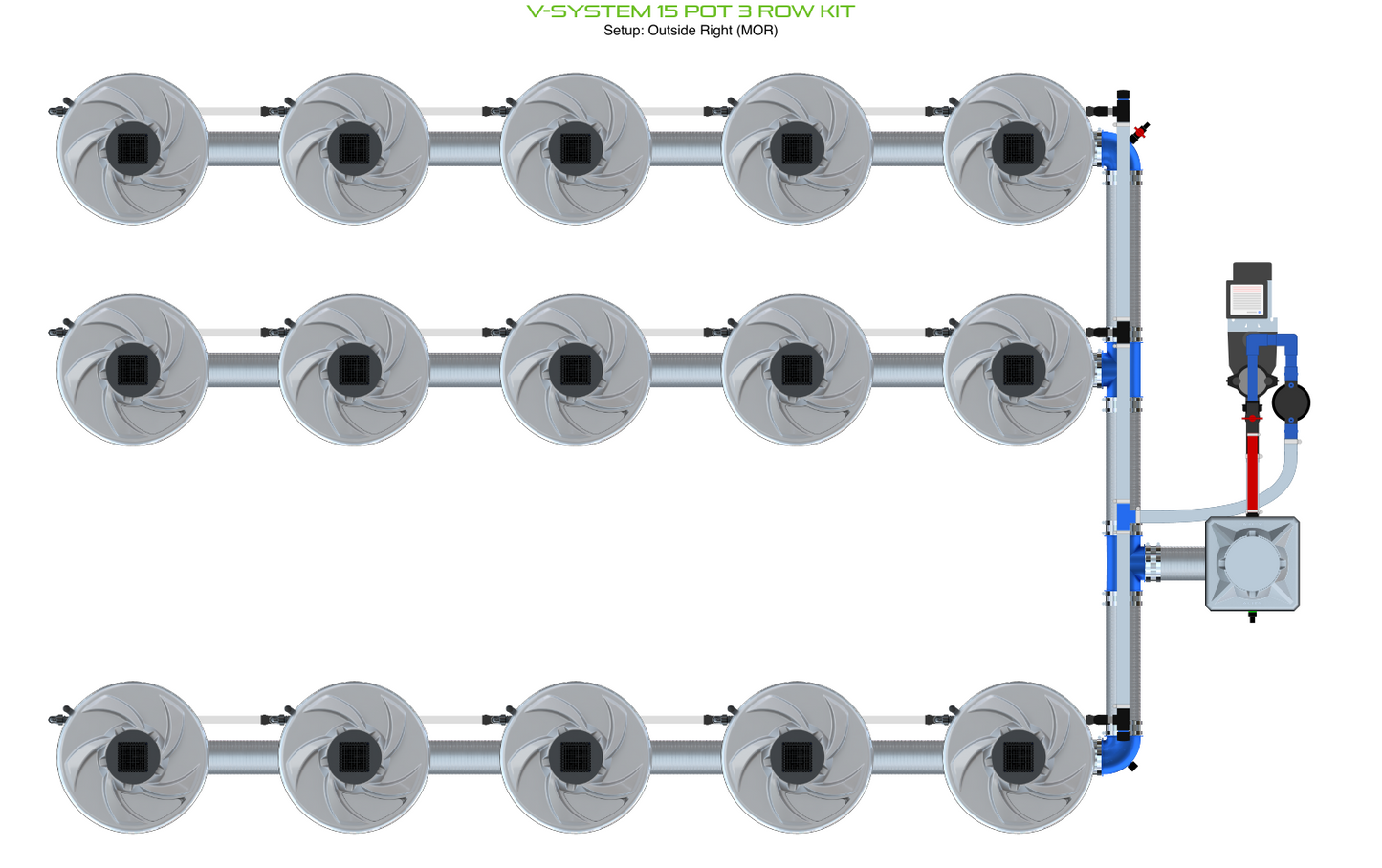

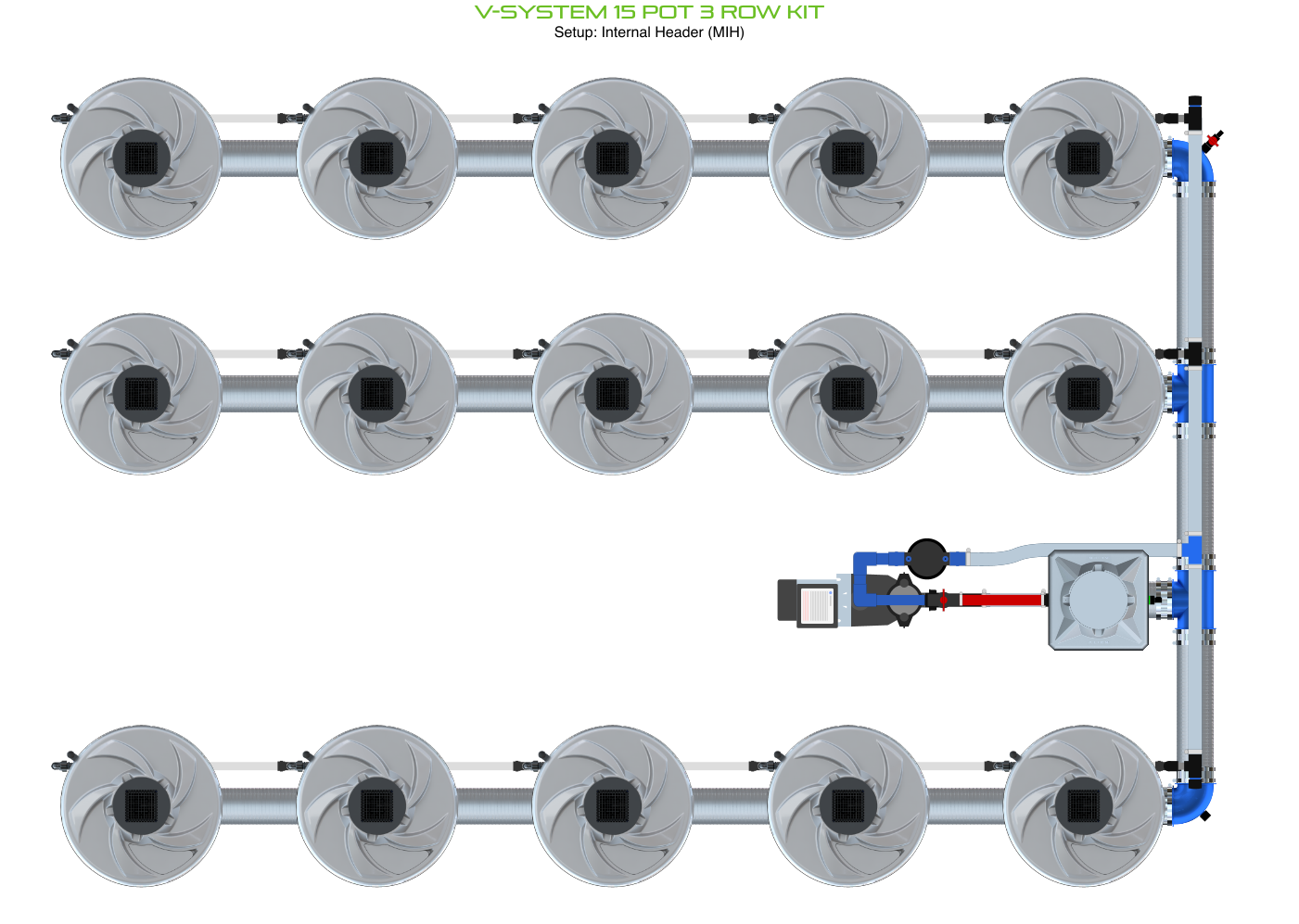

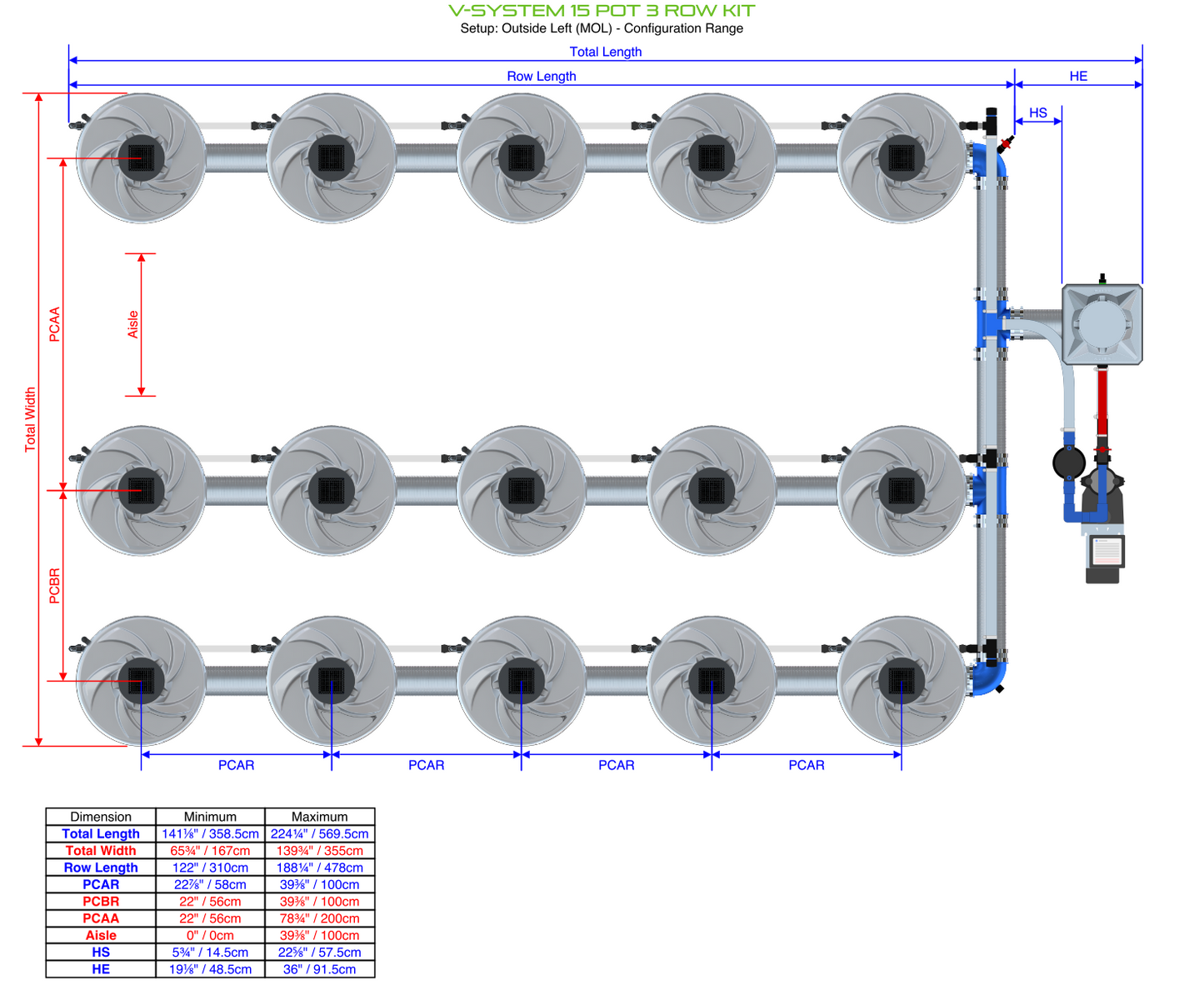

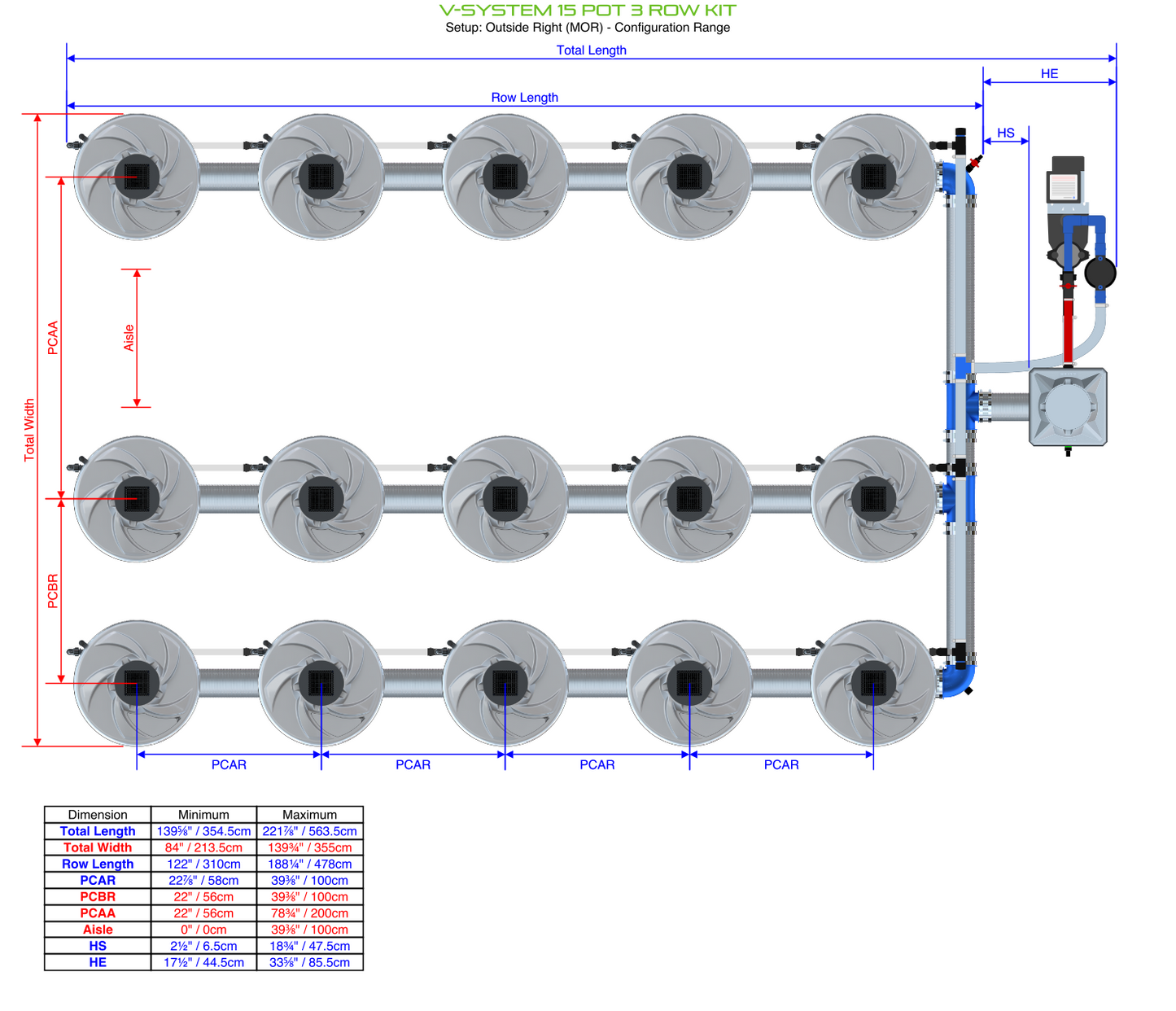

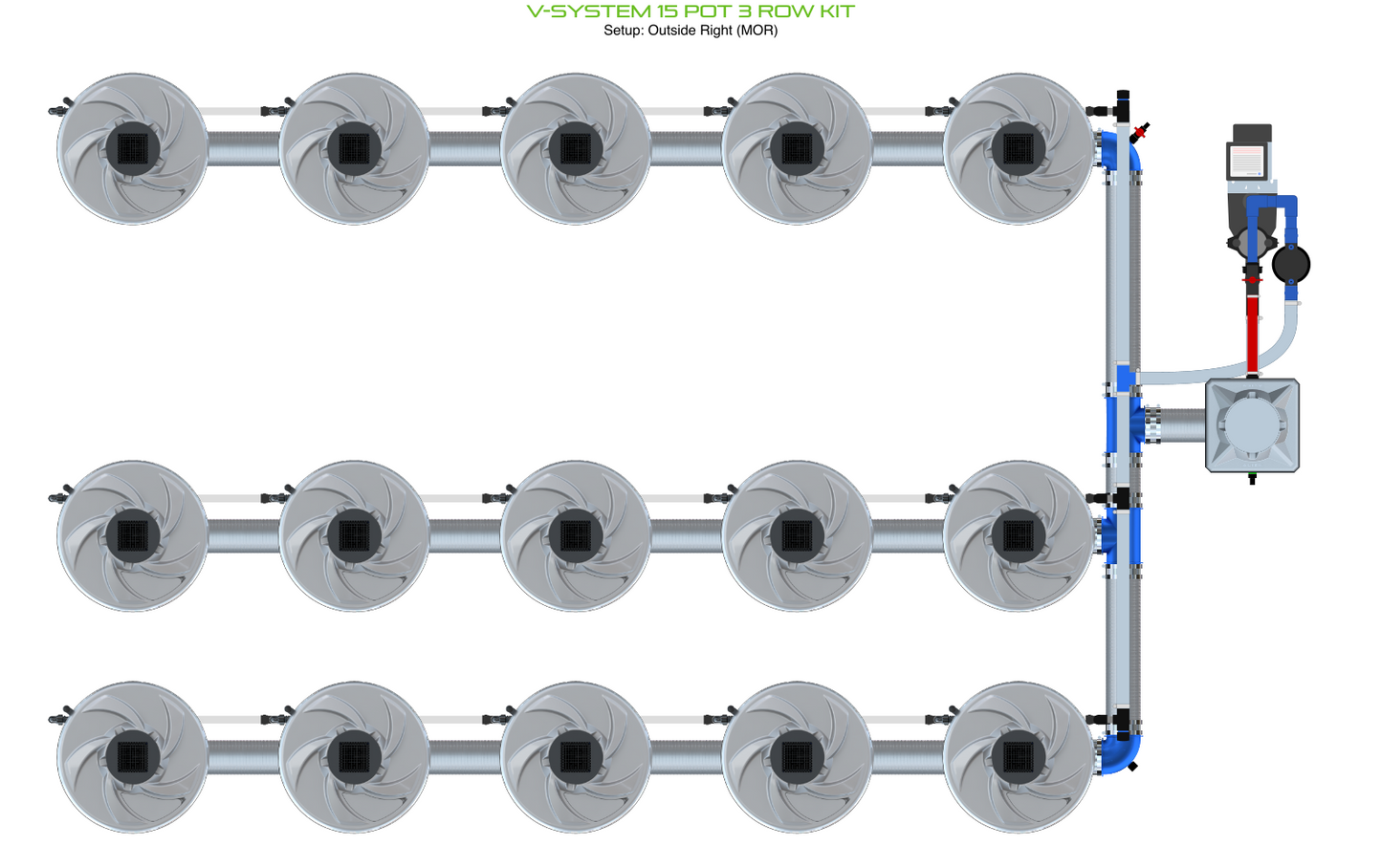

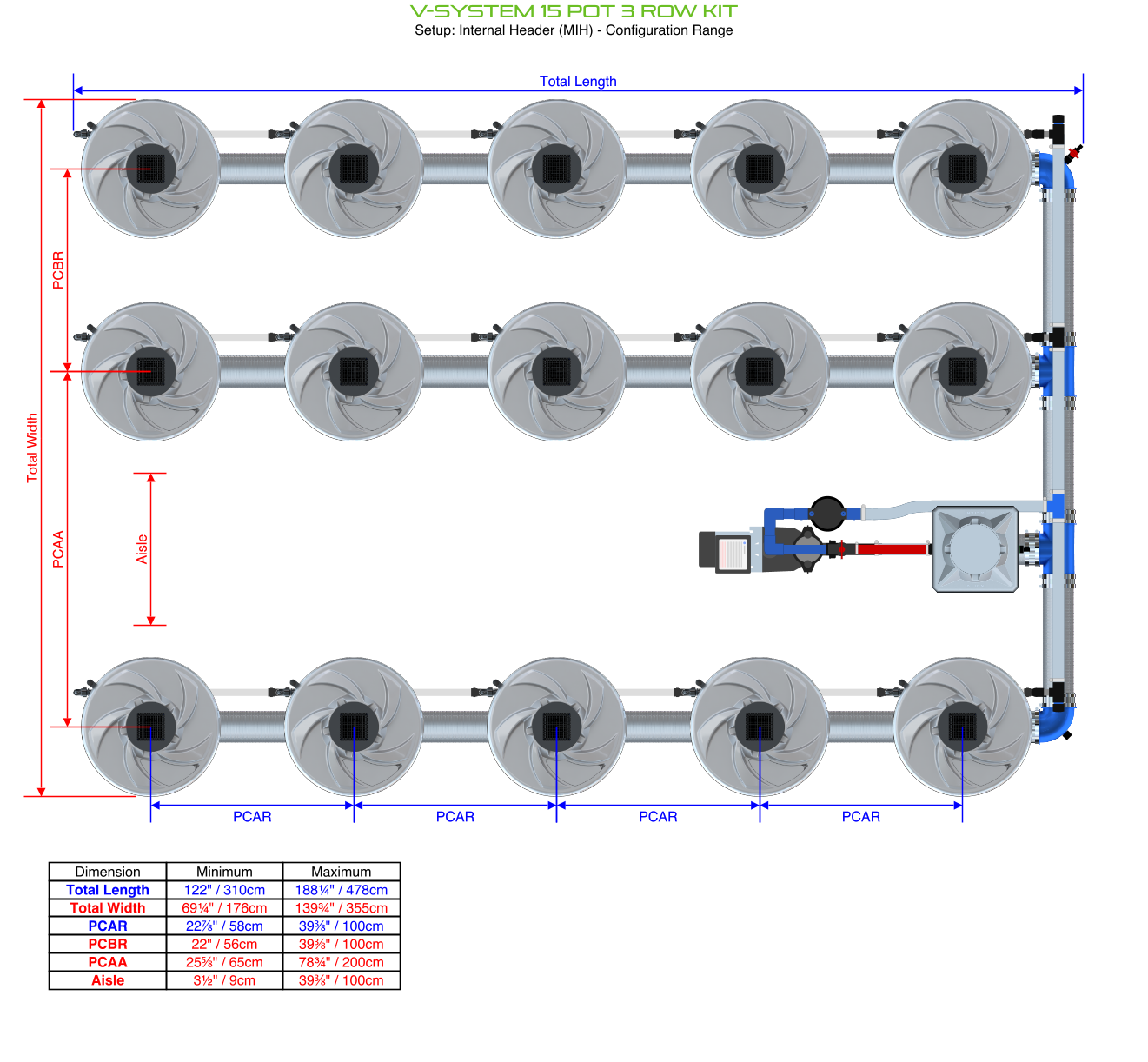

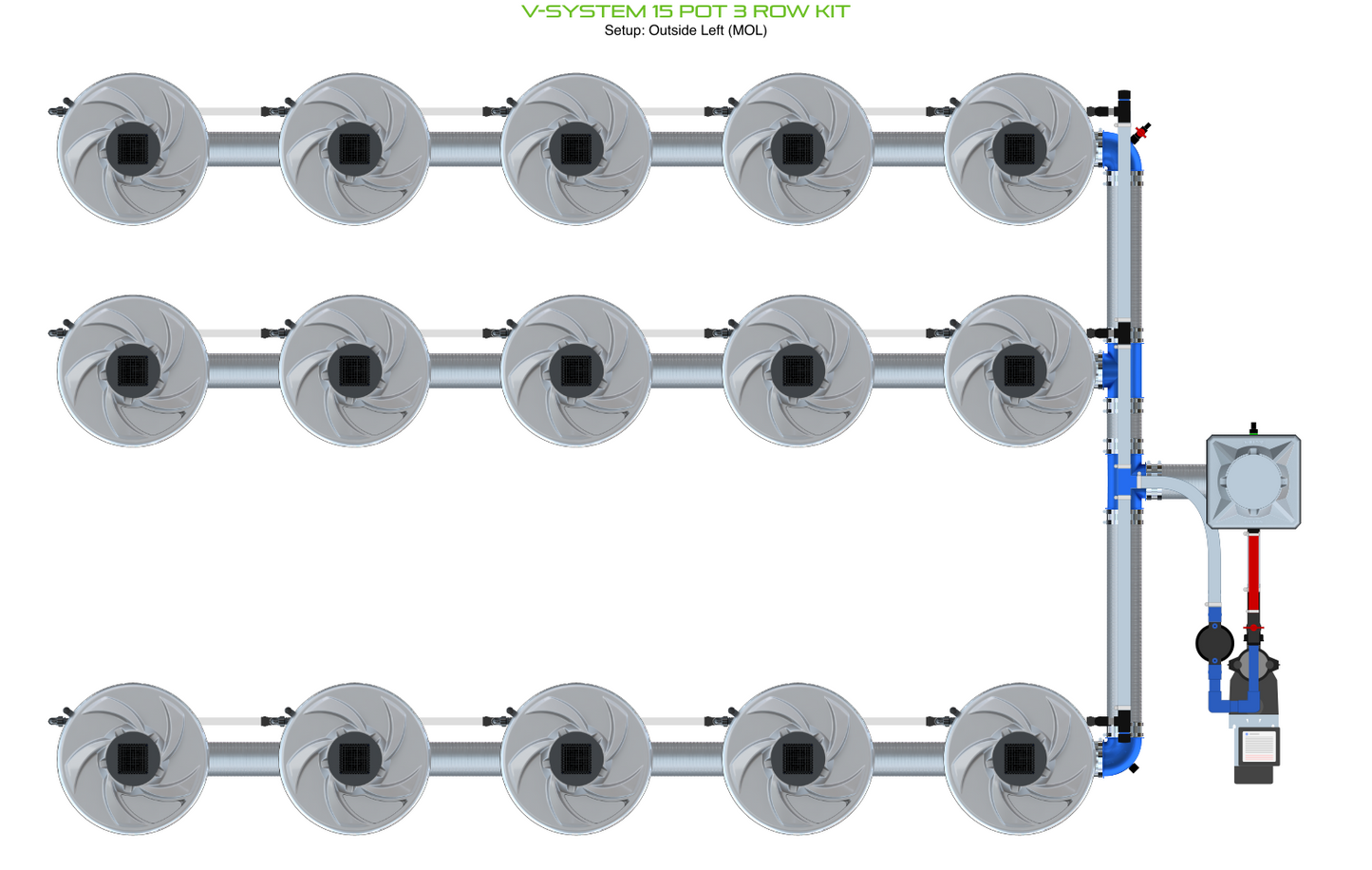

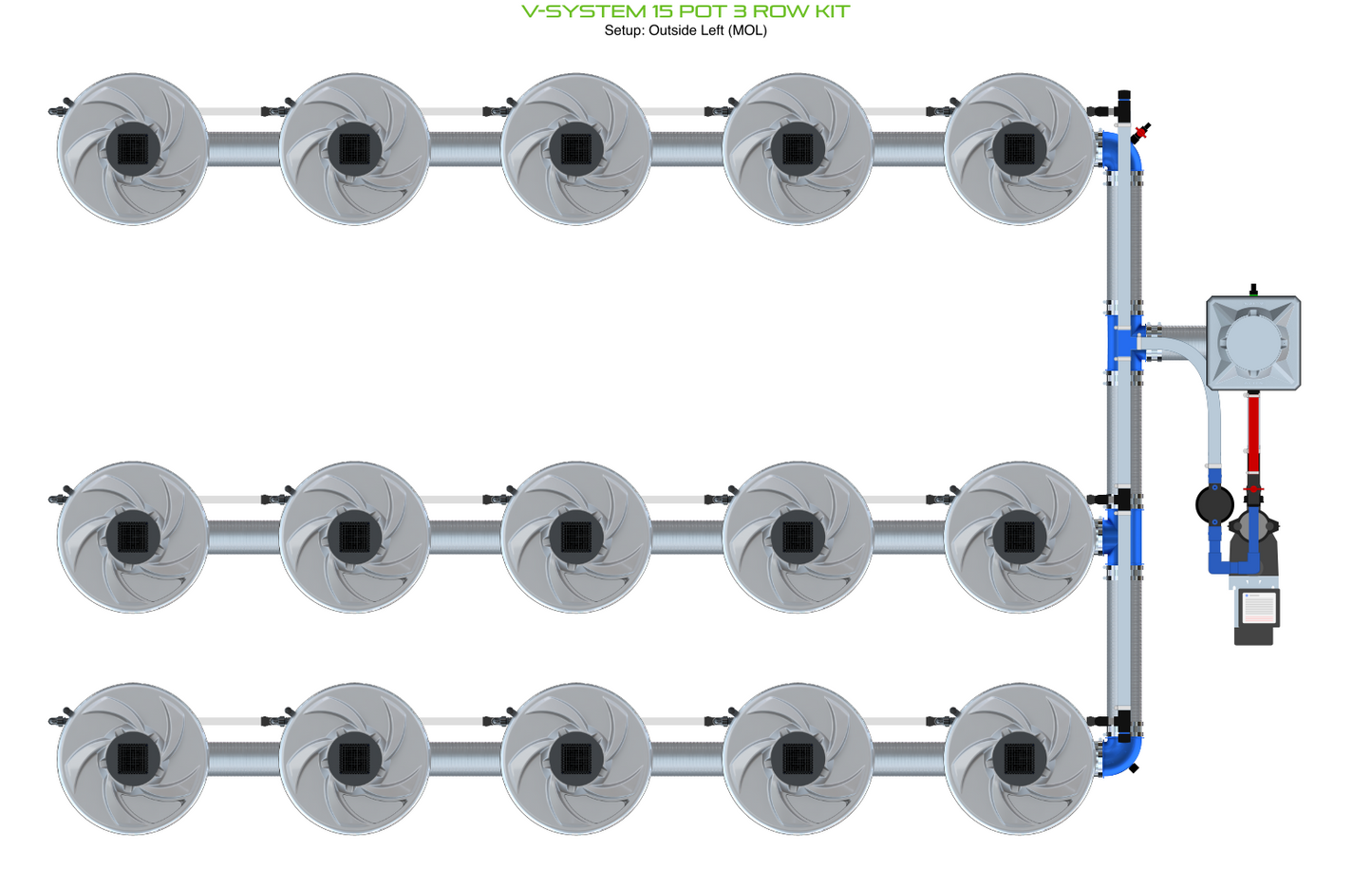

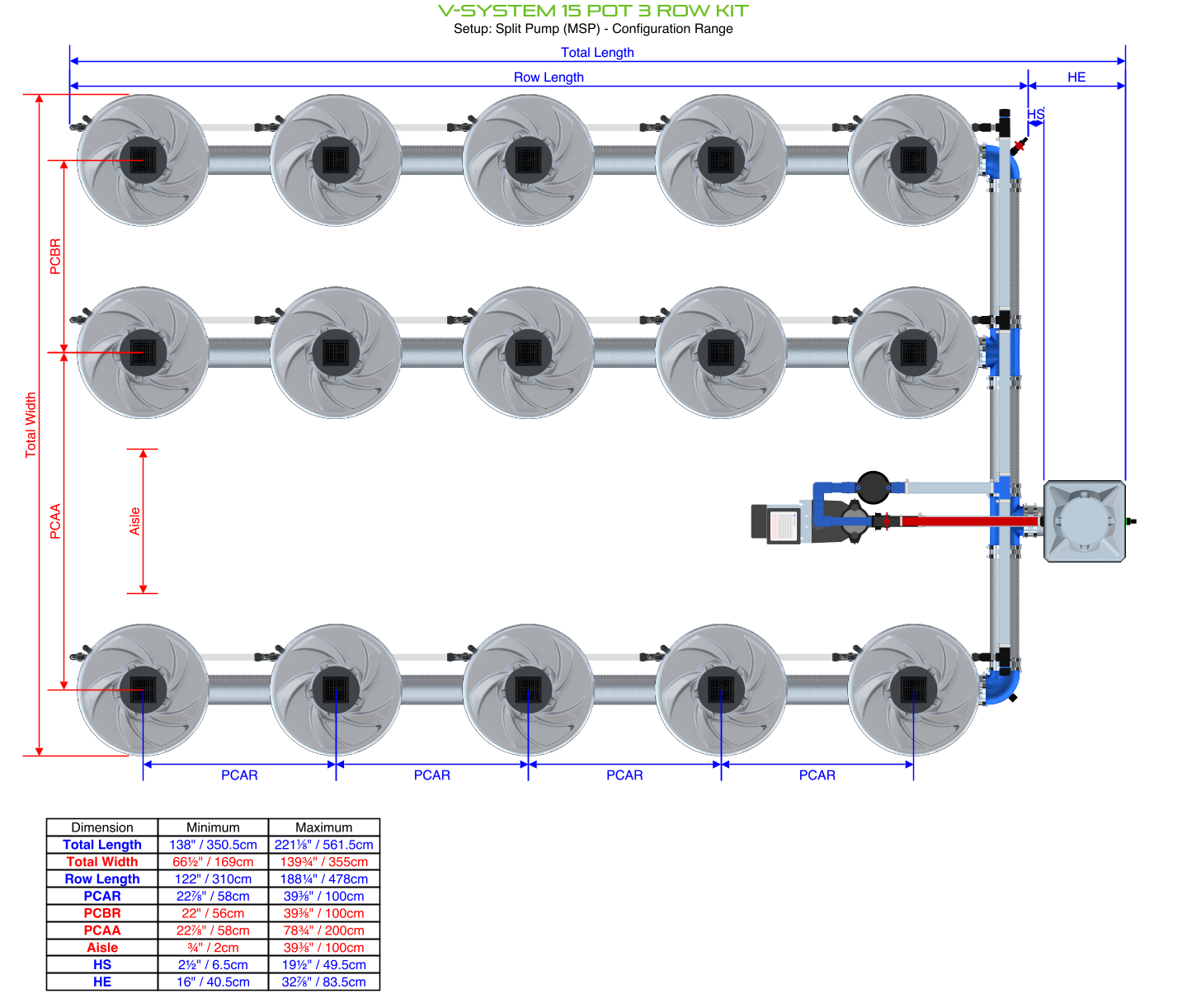

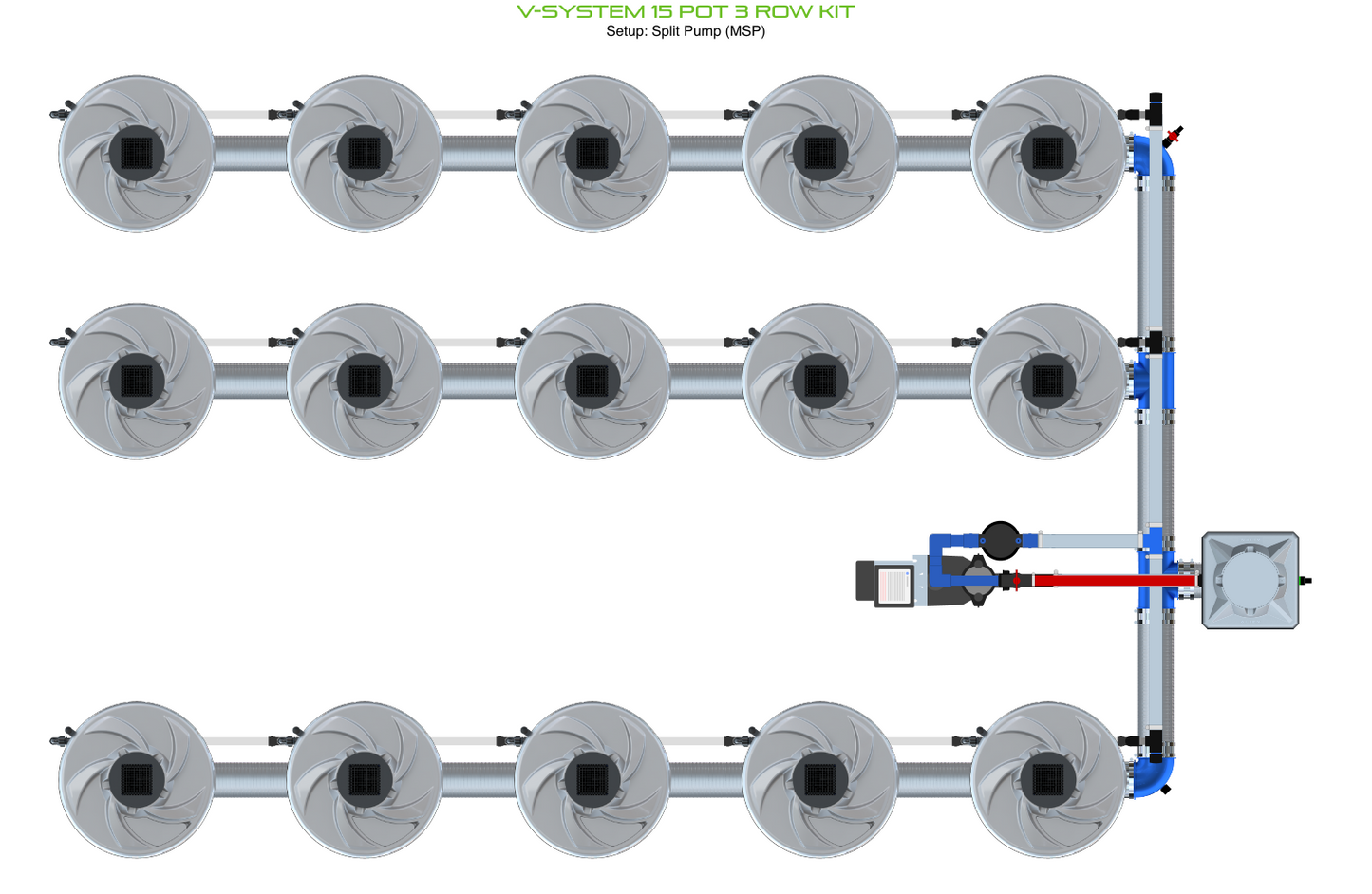

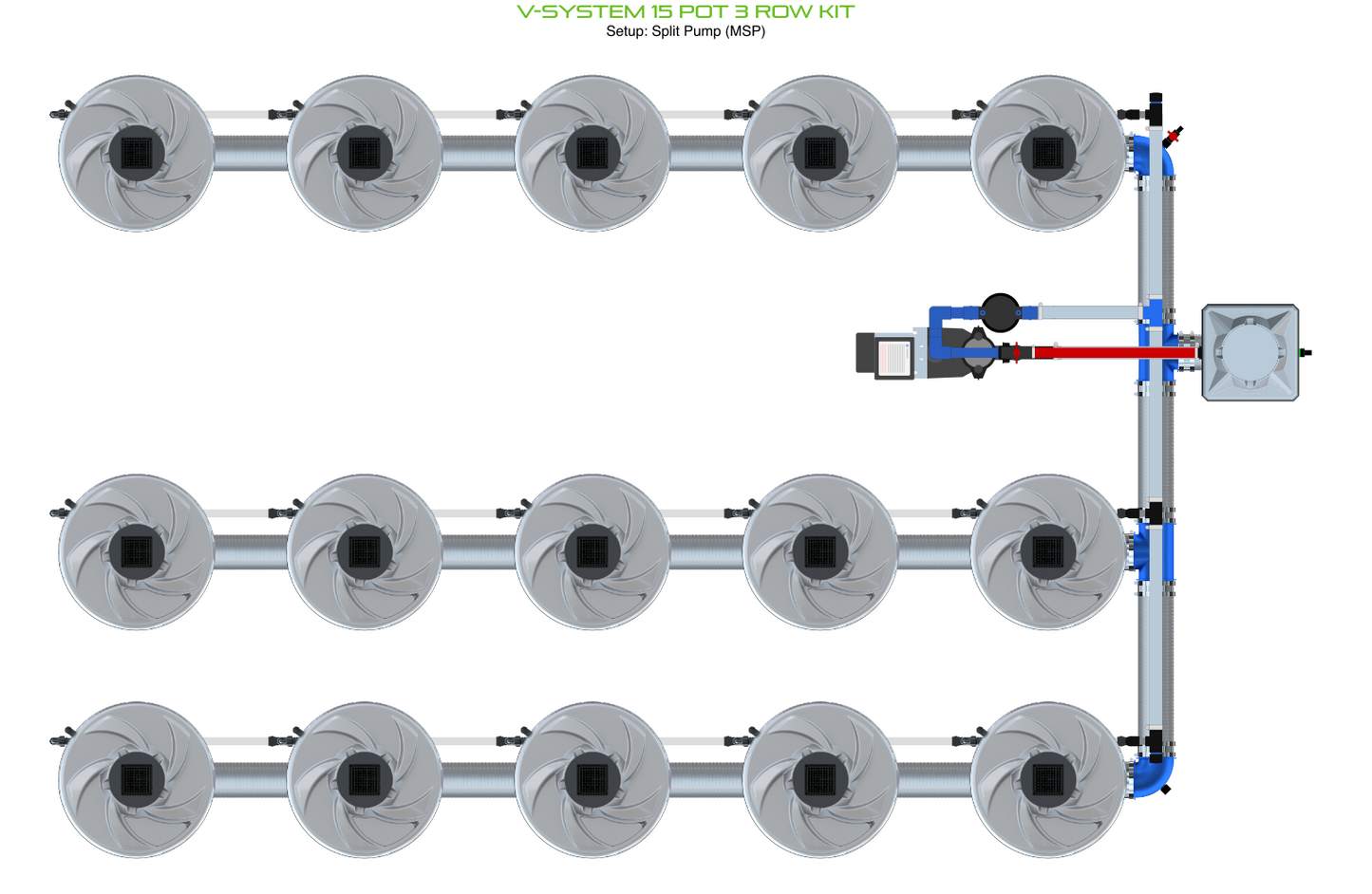

Kit Technical Drawing
Kit Assembly Instructions

The V-SYSTEM 15 Pot 3 Row Kit Includes:

1x V-SYSTEM Vortex Water Pump 750W 120V 15000 l/h
V-Pot 58L15x V-Pot 58L
V-Pot Base15x V-Pot Base
V-Pot Lid15x V-Pot Lid
V-Pot Lid Inspection Cover15x V-Pot Lid Inspection Cover
Square Net Pot15x Square Net Pot
V-Pot Clip15x V-Pot Clip
Air Filter for V-SYSTEM Venturi, 6mm15x Air Filter for V-SYSTEM Venturi, 6mm
Silencer for Venturi15x Silencer for Venturi
Venturi Fitting15x Venturi Fitting
Venturi Air Inlet Pipe 6mm Blue (2X 4")15x Venturi Air Inlet Pipe 6mm Blue (2X 4")
Venturi Inlet Fitting for 22mm Pipe15x Venturi Inlet Fitting for 22mm Pipe
Nut 5"16x Nut 5"
Washer 5" Green Silicone16x Washer 5" Green Silicone
5" Stainless Steel Clamp38x 5" Stainless Steel Clamp
Distribution Tee 40mm1x Distribution Tee 40mm
DM Push-Fit Elbow 22-15mm V-SYSTEM3x DM Push-Fit Elbow 22-15mm V-SYSTEM
DM Push-Fit Elbow 22mm V-SYSTEM3x DM Push-Fit Elbow 22mm V-SYSTEM
DM Push-Fit Tee 22-15mm V-SYSTEM12x DM Push-Fit Tee 22-15mm V-SYSTEM
1/2" Drain Cap Fitting1x 1/2" Drain Cap Fitting
Drain Tap 1/2"-16mm Barb1x Drain Tap 1/2"-16mm Barb
Elbow 5" Barbed with Drain Point2x Elbow 5" Barbed with Drain Point
Elbow 5" Threaded Dual-Flow4x Elbow 5" Threaded Dual-Flow
Filter Manifold Complete 40mm1x Filter Manifold Complete 40mm
Float Valve1x Float Valve
V-SYSTEM Header Pot 20L 40mm1x V-SYSTEM Header Pot 20L 40mm
Silver Lid1x Silver Lid
Header Pot Blank1x Header Pot Blank
Hosetail 16mm-3/4" Female Green1x Hosetail 16mm-3/4" Female Green
Pipe 22mm Gray Rigid 1 Meter - Venturi Feed15x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed
Pipe 32mm Red 1 Meter Spiral1x Pipe 32mm Red 1 Meter Spiral
Pipe 40mm Silver 1 Meter Spiral5x Pipe 40mm Silver 1 Meter Spiral
Pipe 5" Silver Spiral 80cm17x Pipe 5" Silver Spiral 80cm
Tee 5" Barbed2x Tee 5" Barbed
Tee Threaded 5" Dual-Flow12x Tee Threaded 5" Dual-Flow
Threaded Tank Connector 1"2x Threaded Tank Connector 1"
Vortex Pump Inlet Manifold 40mm Short1x Vortex Pump Inlet Manifold 40mm Short
1" Cap for Chiller Connections2x 1" Cap for Chiller Connections
Tank Connector Straight 32mm1x Tank Connector Straight 32mm
Tank Connector Straight 40mm1x Tank Connector Straight 40mm
Terminal Manifold Left 40mm1x Terminal Manifold Left 40mm
Terminal Manifold Center 40mm1x Terminal Manifold Center 40mm
Terminal Manifold Right 40mm1x Terminal Manifold Right 40mm
22mm Insert for 22mm Rigid Pipe36x 22mm Insert for 22mm Rigid Pipe
Clamp Size 22x Clamp Size 2
Clamp Size 310x Clamp Size 3
8mm Screwdriver for 5" Clamp1x 8mm Screwdriver for 5" Clamp
Wrench 5"1x Wrench 5"
Wrench for Float Valve1x Wrench for Float Valve
8mm Socket for 5" Clamp1x 8mm Socket for 5" Clamp
Pipe Cutter 50mm1x Pipe Cutter 50mm
Silicone Grease - Food Grade4x Silicone Grease - Food Grade

Plus Local North American Customer Service, Stocking and Support
