V-SYSTEM 16 Pot 2 Row Kit

1 1
$6,188.52 USD
$6,188.52 USD
Sale Sold out

Free Shipping to the Contiguous US States and most of Canada!

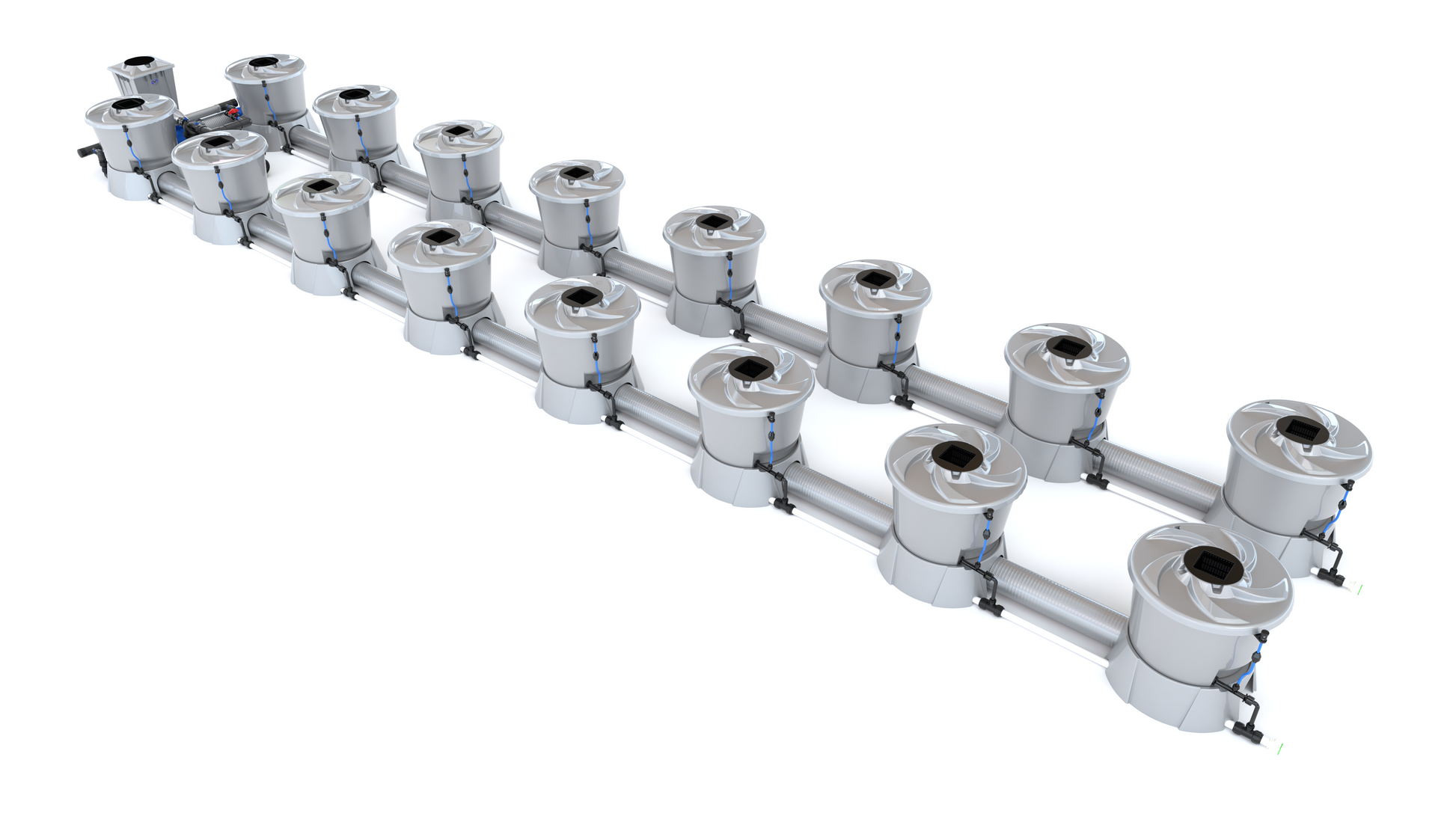

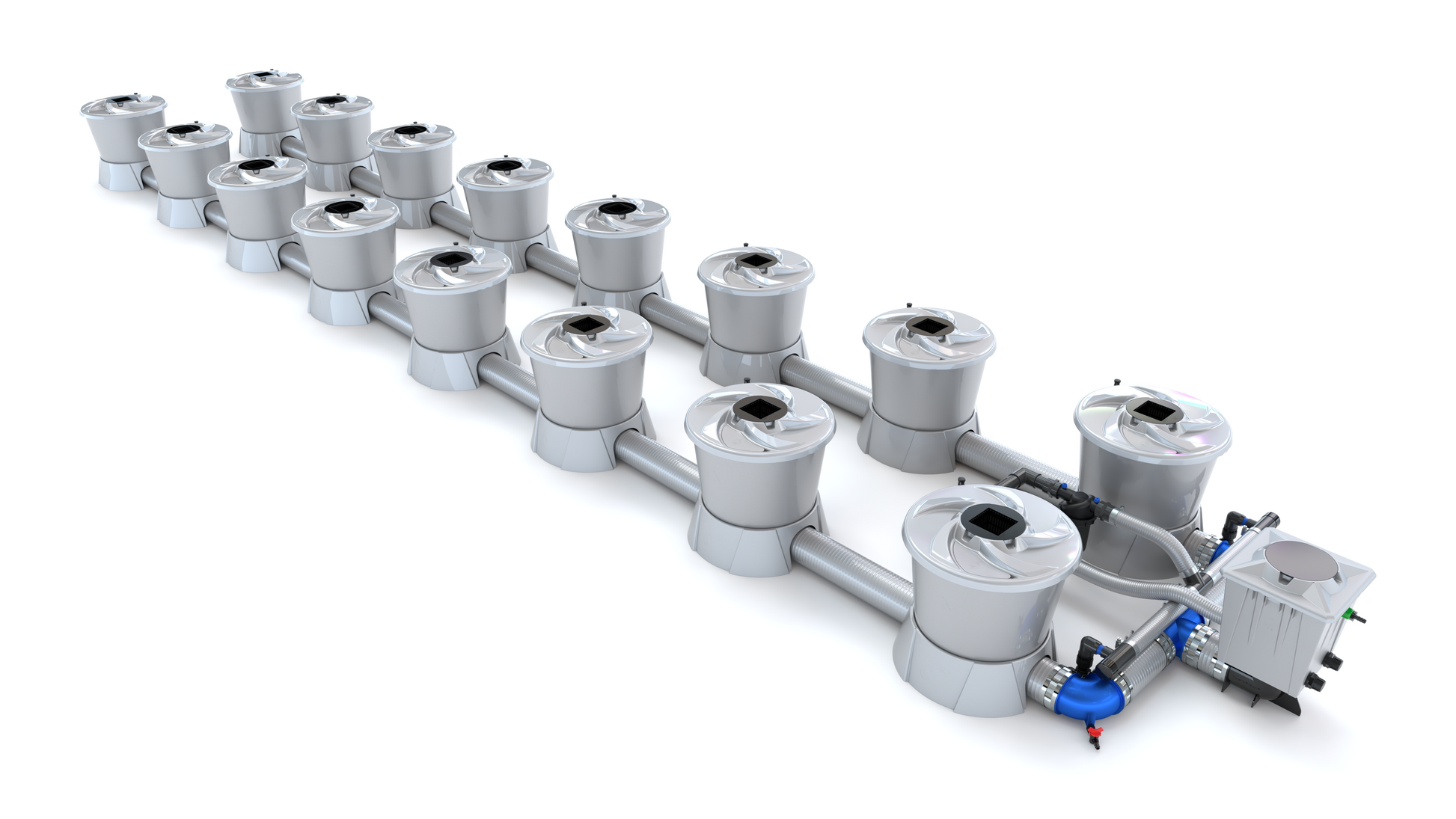

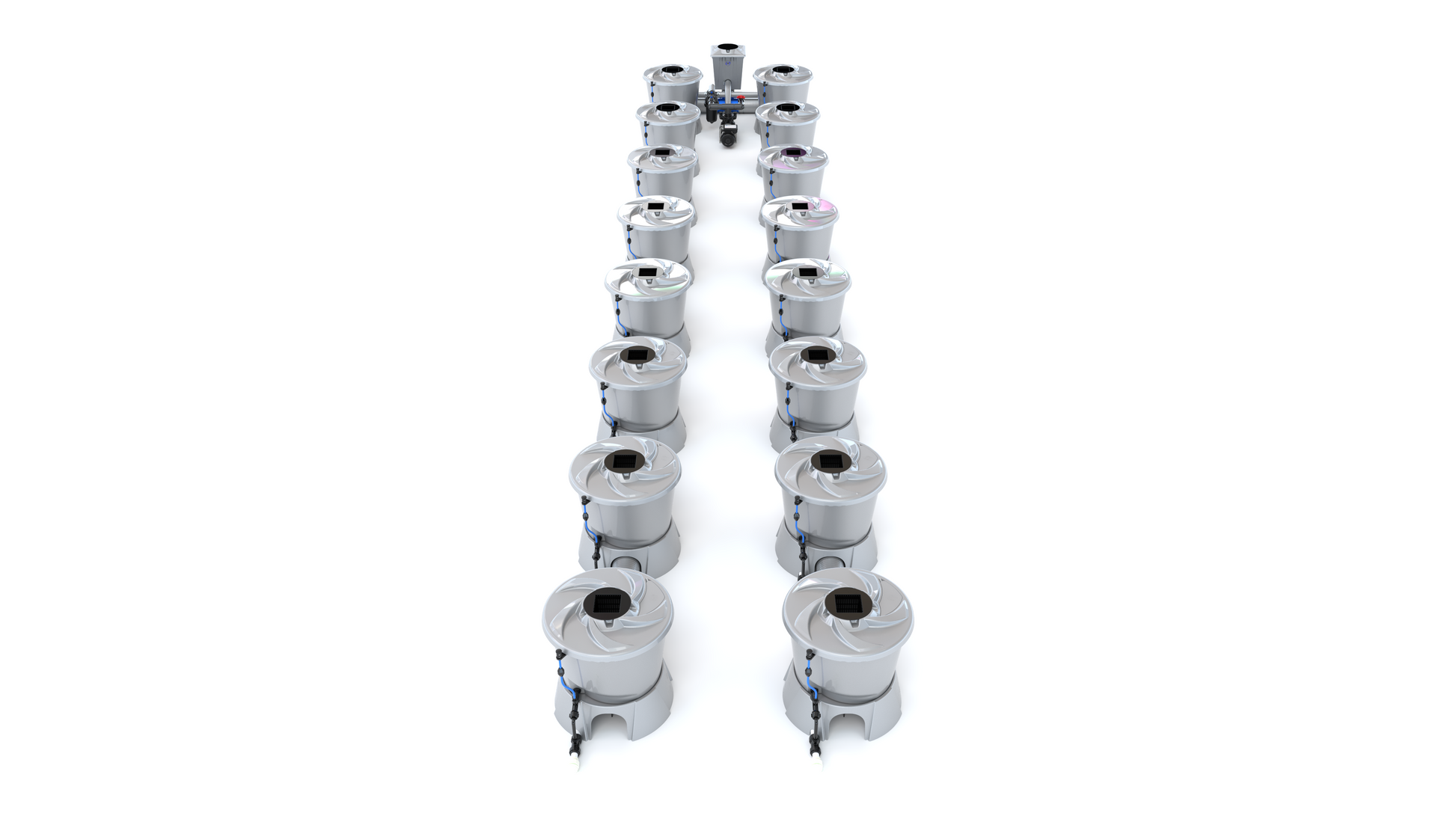

A 16-pot, 2-row V-SYSTEM kit for growing 16 massive plants.

View full details

Key V-SYSTEM Benefits:

  • Direct nutrient distribution
  • Maximum oxygen saturation
  • No air pump needed
  • No heat transferred
  • Vortex fluid motion
  • Naturally aspirated
  • Supports large plants
  • Pots and system completely drain
  • Prevents root clogging
  • Made in Britain

Key V-SYSTEM Features:

  • 15 gallon (58L) V-POT
  • Water fill line
  • Total-drainage bases
  • Venturi injectors
  • Inspection Covers
  • 5" spiral tubing
  • 5" Dual-Flow™ fittings
  • Integrated filtration
  • T304 Stainless clamps
  • Heavy-duty components
  • Push-fit feed connections
  • JET-STREAM® Vortex™ pump

V-SYSTEM 16 Pot 2 Row Kit
Technical Information

Number of pots: 16
Number of rows: 2

Kit total fluid volume: 262.6 gallons (994 fl oz)

Minimum assembled size (can space pots more widely for a larger footprint):
Length: 15' 10.9" (190.9 inches / 4850 mm)
Width: 3' 11.2" (47.2 inches / 1200 mm)

Water Pump Included with the Kit:
Model: V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h
Wattage: 1100 watts
Flow Rate: 4676 gal/hr (17700 L/hr)

Recommended water chiller minimum capacity: 396 gallons (1500 L)

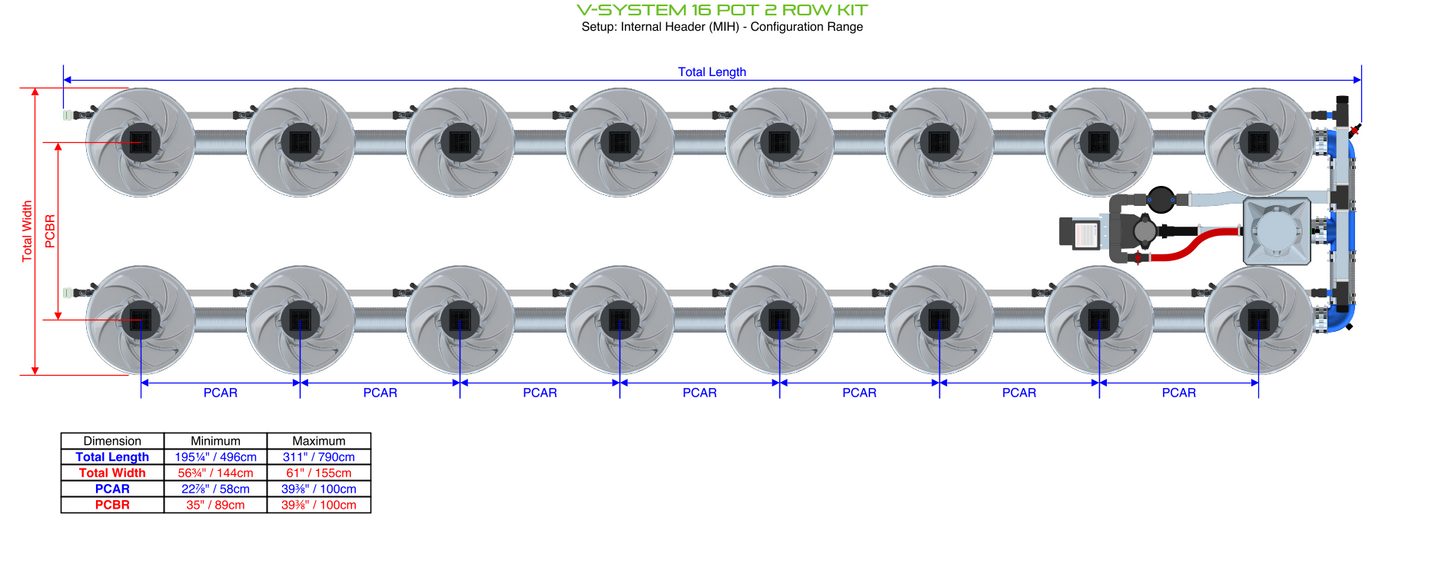

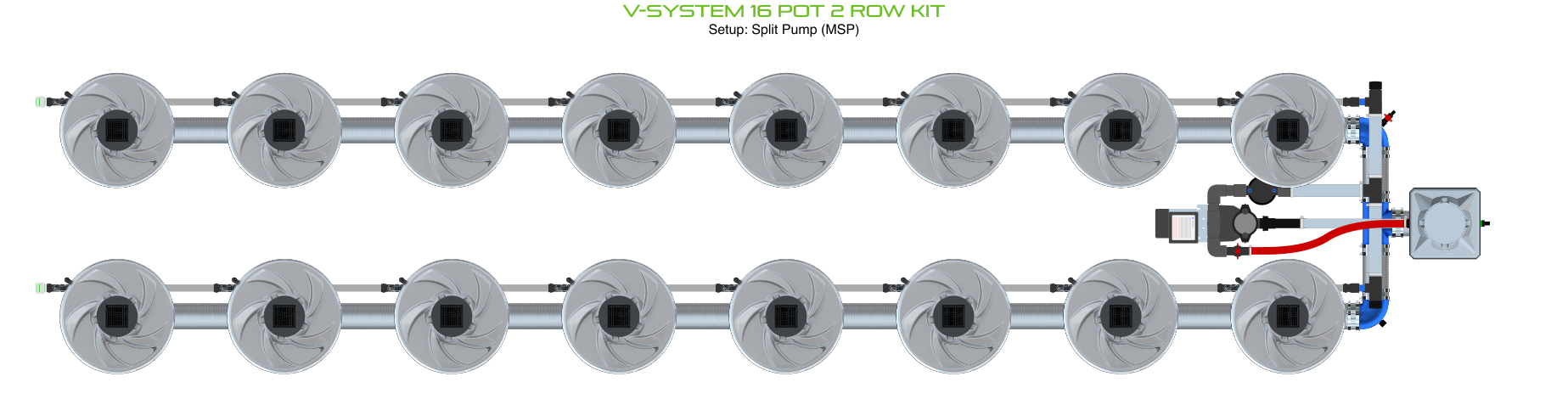

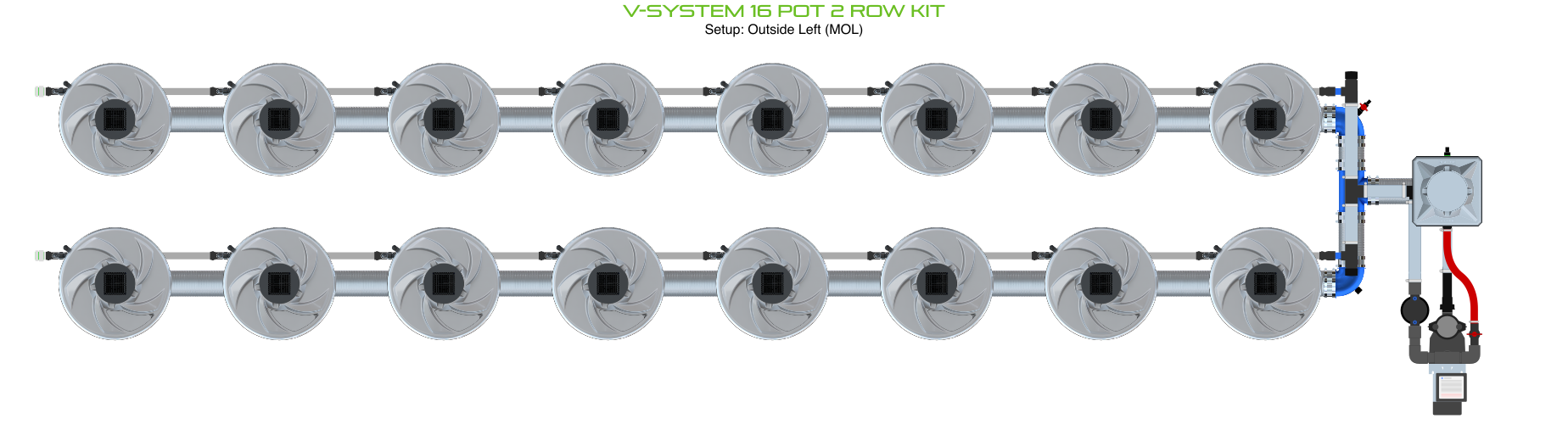

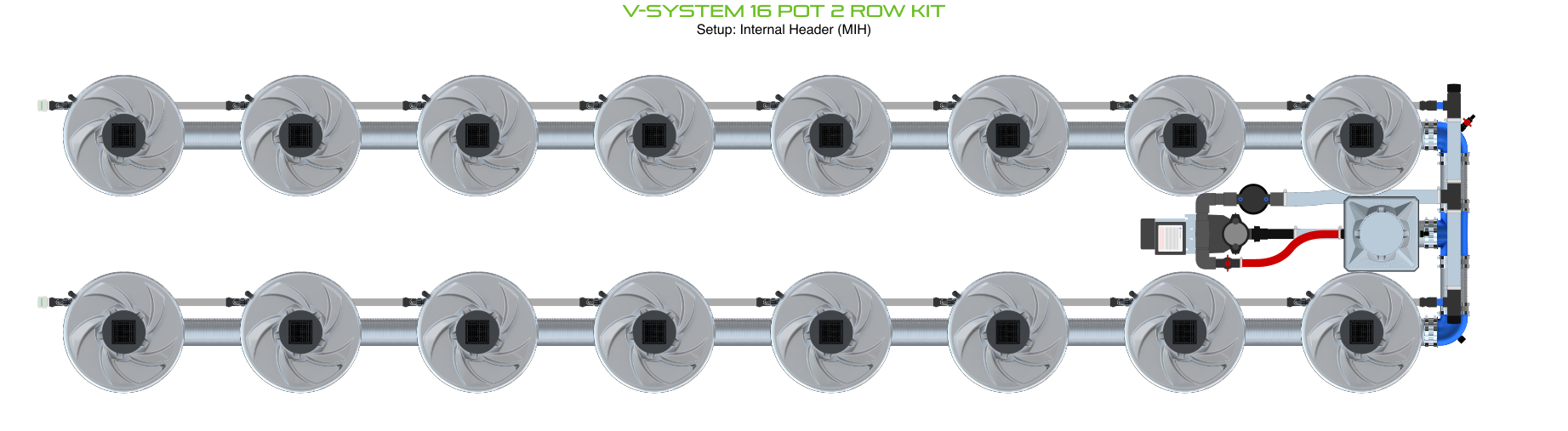

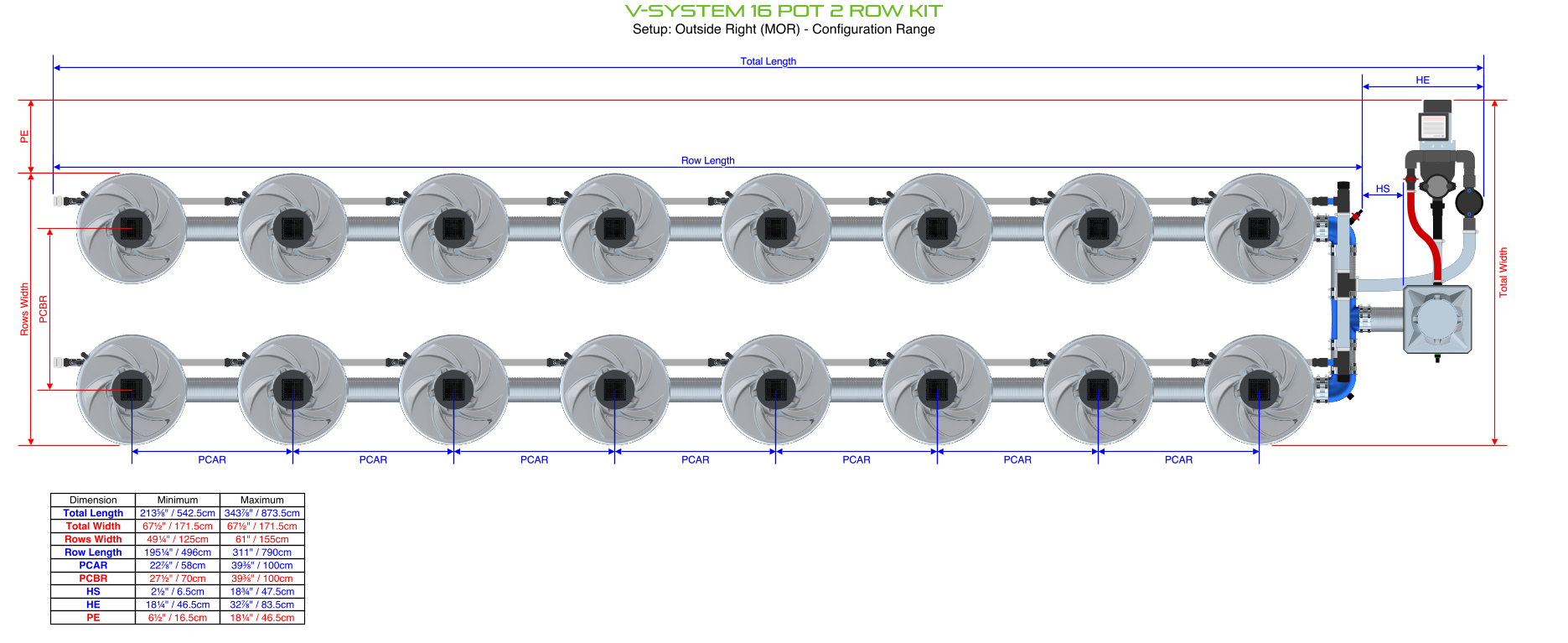

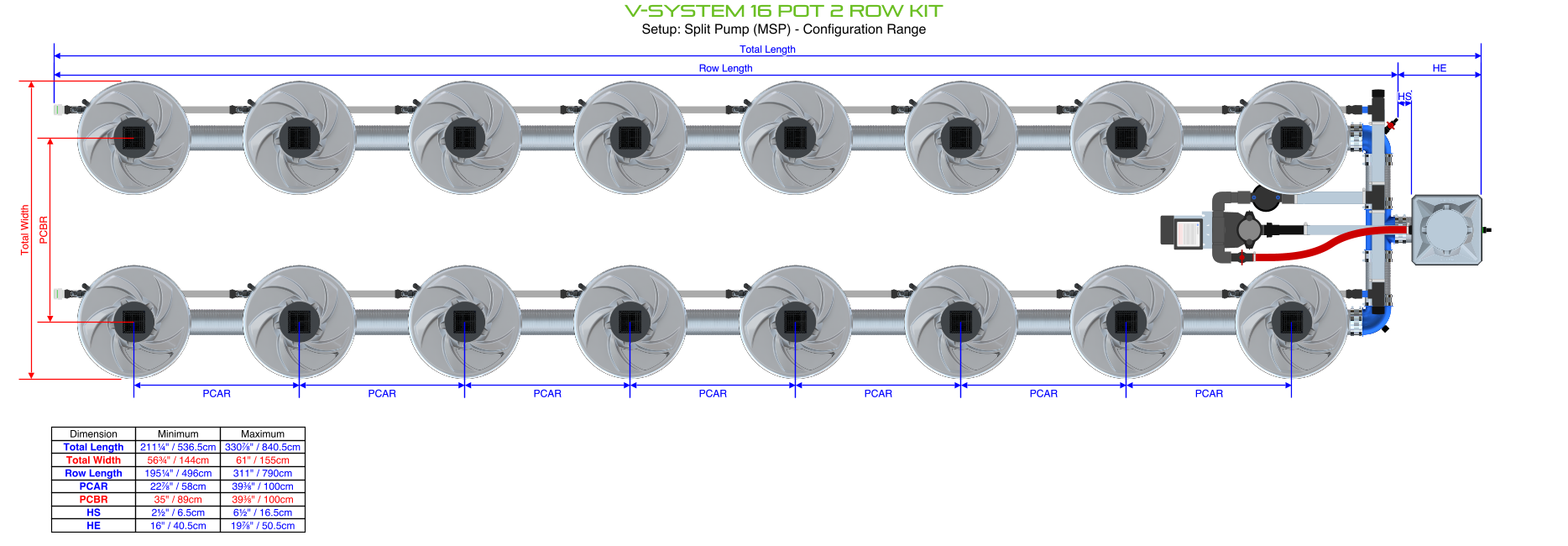

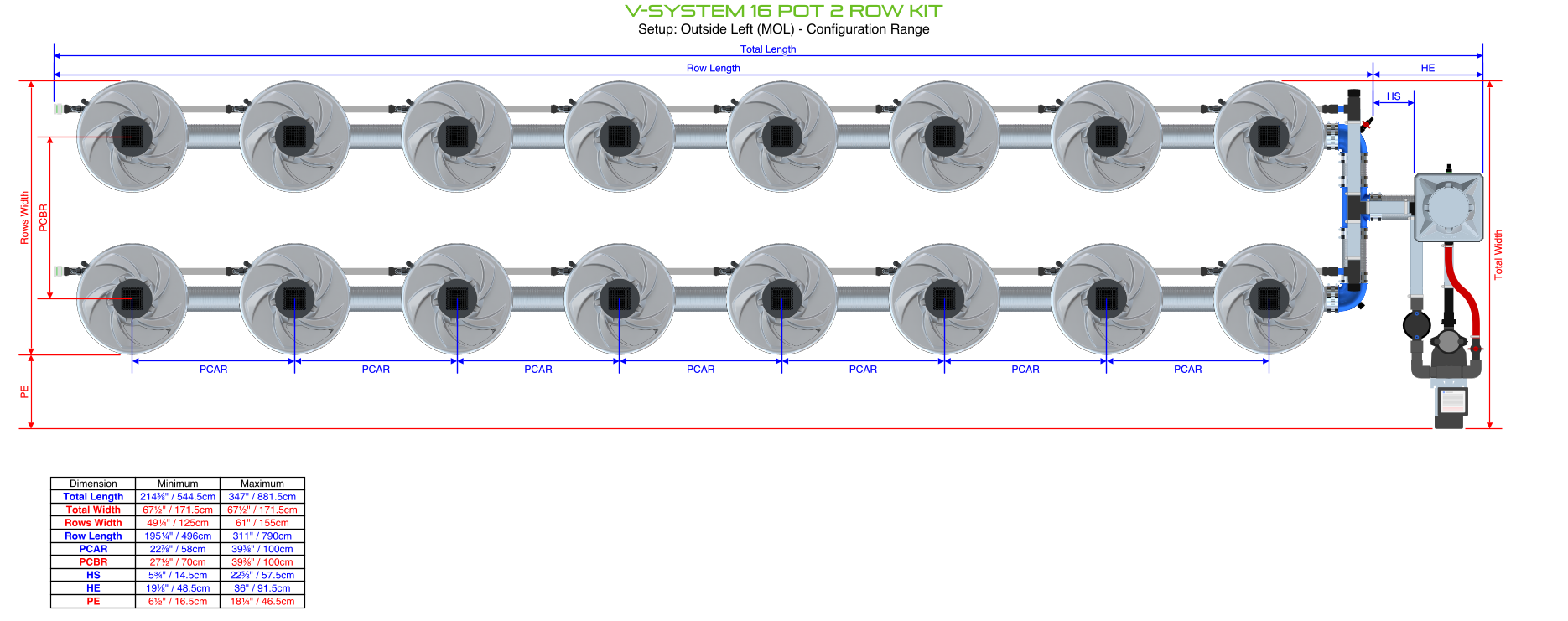

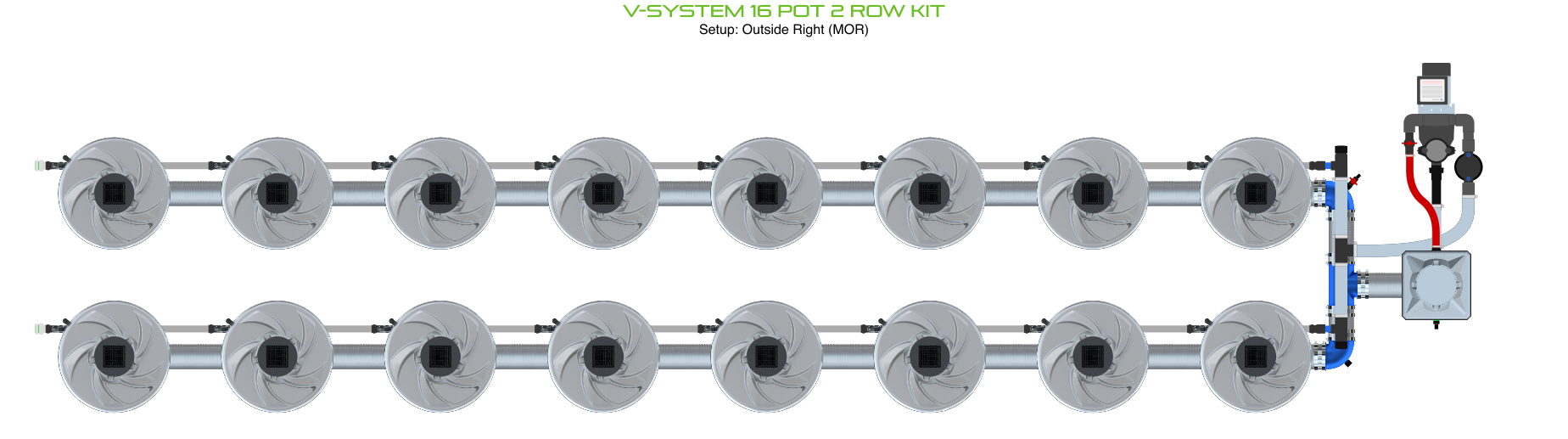

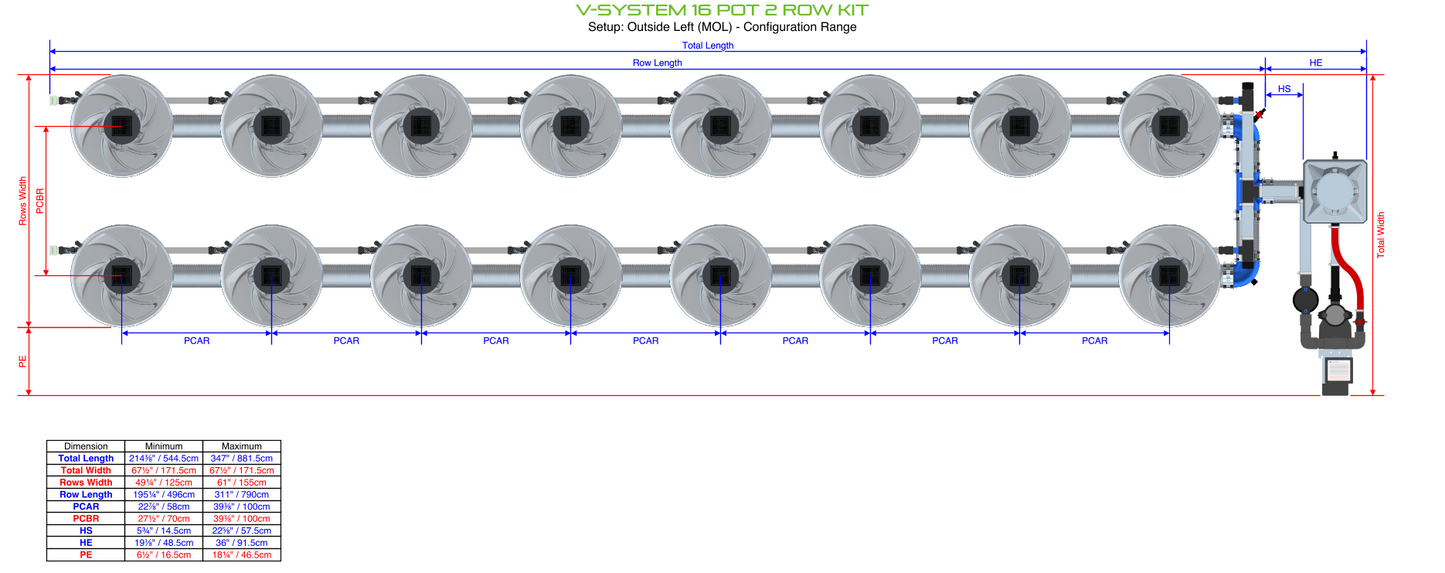

Kit Technical Drawing
Kit Assembly Instructions

The V-SYSTEM 16 Pot 2 Row Kit Includes:

1x V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h
V-Pot 58L16x V-Pot 58L
V-Pot Base16x V-Pot Base
V-Pot Lid16x V-Pot Lid
V-Pot Lid Inspection Cover16x V-Pot Lid Inspection Cover
Square Net Pot16x Square Net Pot
V-Pot Clip16x V-Pot Clip
Air Filter for V-SYSTEM Venturi, 6mm16x Air Filter for V-SYSTEM Venturi, 6mm
Silencer for Venturi16x Silencer for Venturi
Venturi Fitting16x Venturi Fitting
Venturi Air Inlet Pipe 6mm Blue (2X 4")16x Venturi Air Inlet Pipe 6mm Blue (2X 4")
Nut 5"17x Nut 5"
Washer 5" Green Silicone17x Washer 5" Green Silicone
5" Stainless Steel Clamp38x 5" Stainless Steel Clamp
Distribution Tee 50mm1x Distribution Tee 50mm
DM Push-Fit Elbow 28mm V-SYSTEM2x DM Push-Fit Elbow 28mm V-SYSTEM
DM Push-Fit Tee 28-15mm V-SYSTEM16x DM Push-Fit Tee 28-15mm V-SYSTEM
1/2" Drain Cap Fitting1x 1/2" Drain Cap Fitting
Drain Tap 1/2"-16mm Barb1x Drain Tap 1/2"-16mm Barb
Elbow 5" Barbed with Drain Point2x Elbow 5" Barbed with Drain Point
Elbow 5" Threaded Dual-Flow3x Elbow 5" Threaded Dual-Flow
Filter Manifold Complete 50mm-1.5"1x Filter Manifold Complete 50mm-1.5"
Float Valve1x Float Valve
V-SYSTEM Header Pot 20L 40mm1x V-SYSTEM Header Pot 20L 40mm
Silver Lid1x Silver Lid
Header Pot Blank1x Header Pot Blank
Hosetail 16mm-3/4" Female Green1x Hosetail 16mm-3/4" Female Green
Venturi Inlet Fitting for 28mm Pipe16x Venturi Inlet Fitting for 28mm Pipe
Pipe 28mm White Rigid 1 Meter - Venturi Feed16x Pipe 28mm White Rigid 1 Meter - Venturi Feed
Pipe 32mm Red 1 Meter Spiral1x Pipe 32mm Red 1 Meter Spiral
Pipe 40mm Silver 1 Meter Spiral1x Pipe 40mm Silver 1 Meter Spiral
Pipe 50mm Silver 1 Meter2x Pipe 50mm Silver 1 Meter
Pipe 5" Silver Spiral 80cm17x Pipe 5" Silver Spiral 80cm
Tee 5" Barbed1x Tee 5" Barbed
Tee Threaded 5" Dual-Flow14x Tee Threaded 5" Dual-Flow
Threaded Tank Connector 1"2x Threaded Tank Connector 1"
Vortex Pump Inlet Manifold 40mm Short1x Vortex Pump Inlet Manifold 40mm Short
1" Cap for Chiller Connections2x 1" Cap for Chiller Connections
Tank Connector Straight 32mm1x Tank Connector Straight 32mm
Tank Connector Straight 40mm1x Tank Connector Straight 40mm
Elbow 50mm Barbed1x Elbow 50mm Barbed
Terminal Manifold Left 50mm1x Terminal Manifold Left 50mm
Terminal Manifold Right 50mm1x Terminal Manifold Right 50mm
28mm Insert for 28mm Rigid Pipe40x 28mm Insert for 28mm Rigid Pipe
28mm Push-Fit Stop End2x 28mm Push-Fit Stop End
Clamp Size 22x Clamp Size 2
Clamp Size 32x Clamp Size 3
Clamp Size 48x Clamp Size 4
8mm Screwdriver for 5" Clamp1x 8mm Screwdriver for 5" Clamp
Wrench 5"1x Wrench 5"
Wrench for Float Valve1x Wrench for Float Valve
8mm Socket for 5" Clamp1x 8mm Socket for 5" Clamp
Pipe Cutter 50mm1x Pipe Cutter 50mm
Silicone Grease - Food Grade4x Silicone Grease - Food Grade

Plus Local North American Customer Service, Stocking and Support
