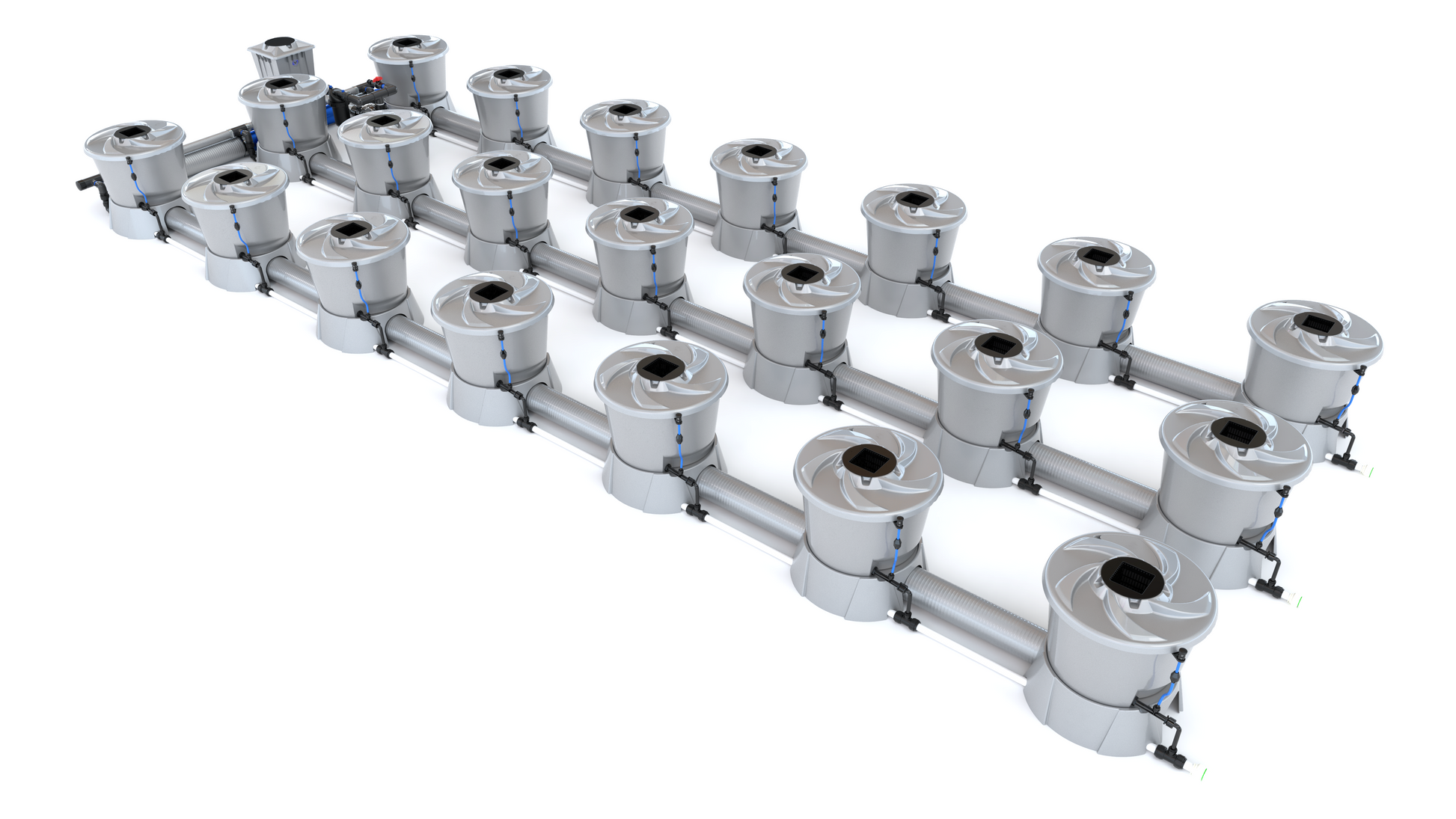

V-SYSTEM 21 Pot 3 Row Kit

1 1
$8,008.91 USD
$8,008.91 USD
Sale Sold out

Free Shipping to the Contiguous US States and most of Canada!

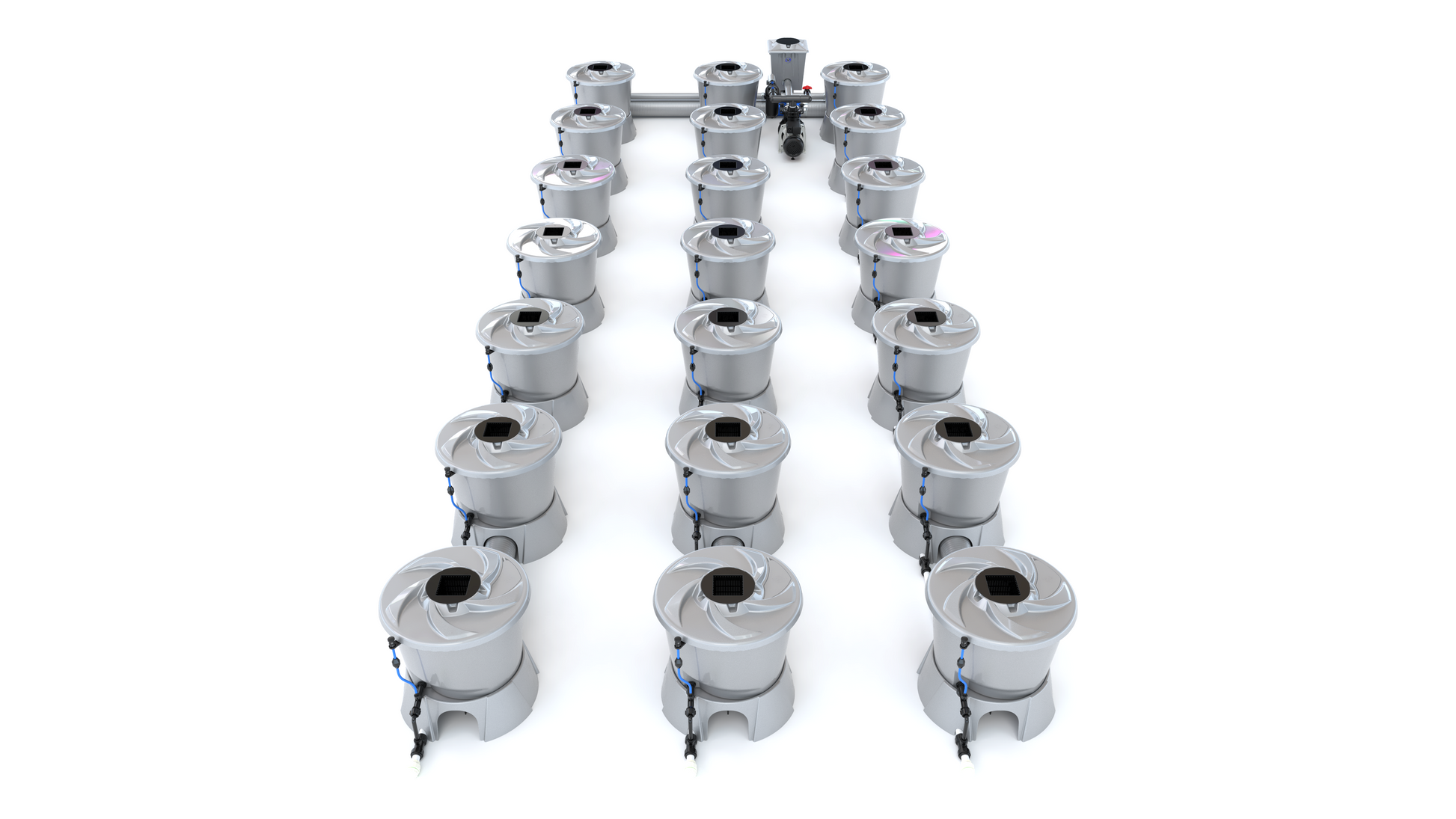

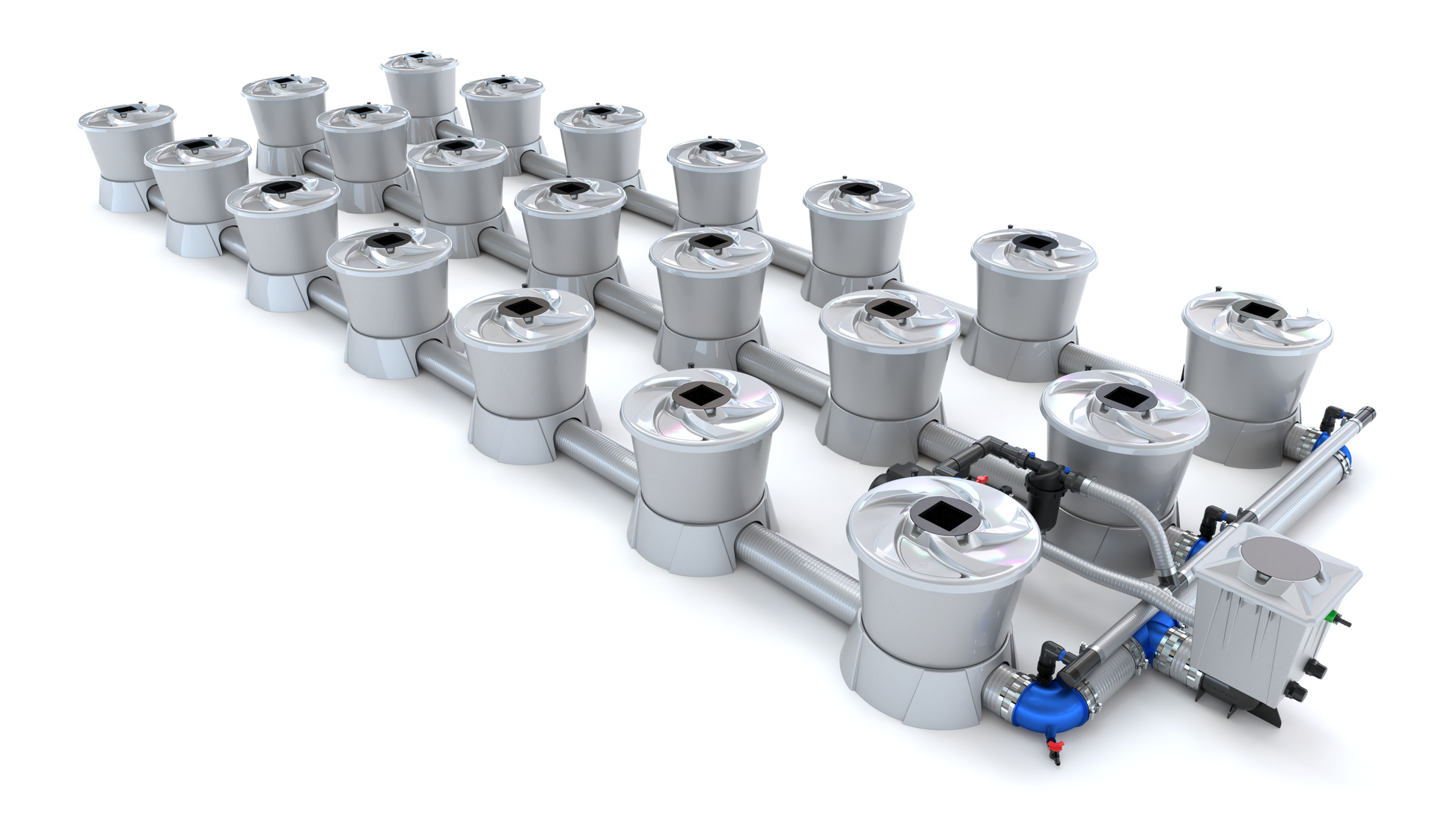

A 21-pot, 3-row V-SYSTEM kit for growing 21 massive plants.

View full details

Key V-SYSTEM Benefits:

  • Direct nutrient distribution
  • Maximum oxygen saturation
  • No air pump needed
  • No heat transferred
  • Vortex fluid motion
  • Naturally aspirated
  • Supports large plants
  • Pots and system completely drain
  • Prevents root clogging
  • Made in Britain

Key V-SYSTEM Features:

  • 15 gallon (58L) V-POT
  • Water fill line
  • Total-drainage bases
  • Venturi injectors
  • Inspection Covers
  • 5" spiral tubing
  • 5" Dual-Flow™ fittings
  • Integrated filtration
  • T304 Stainless clamps
  • Heavy-duty components
  • Push-fit feed connections
  • JET-STREAM® Vortex™ pump

V-SYSTEM 21 Pot 3 Row Kit
Technical Information

Number of pots: 21
Number of rows: 3

Kit total fluid volume: 342.9 gallons (1298 L)

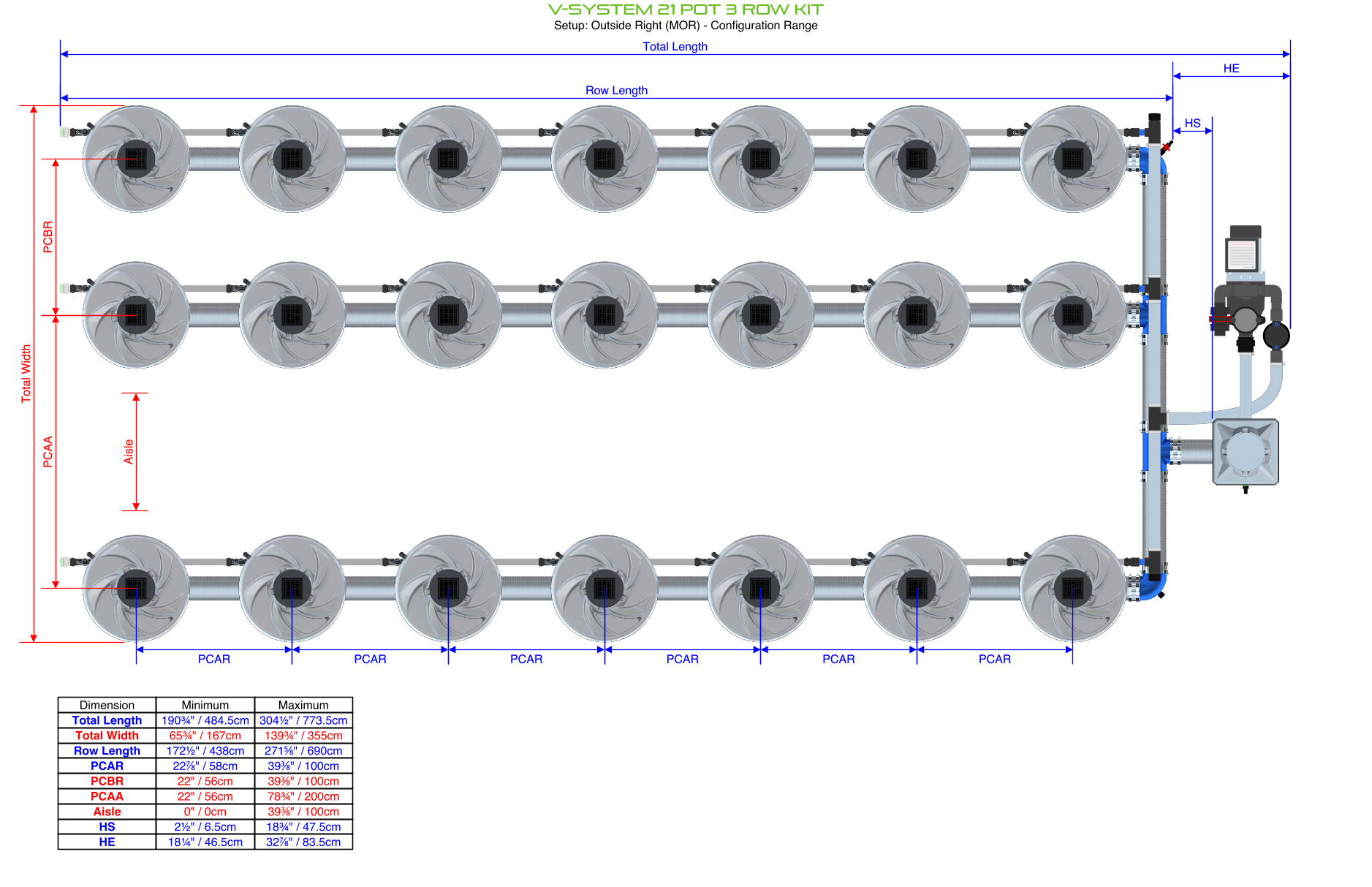

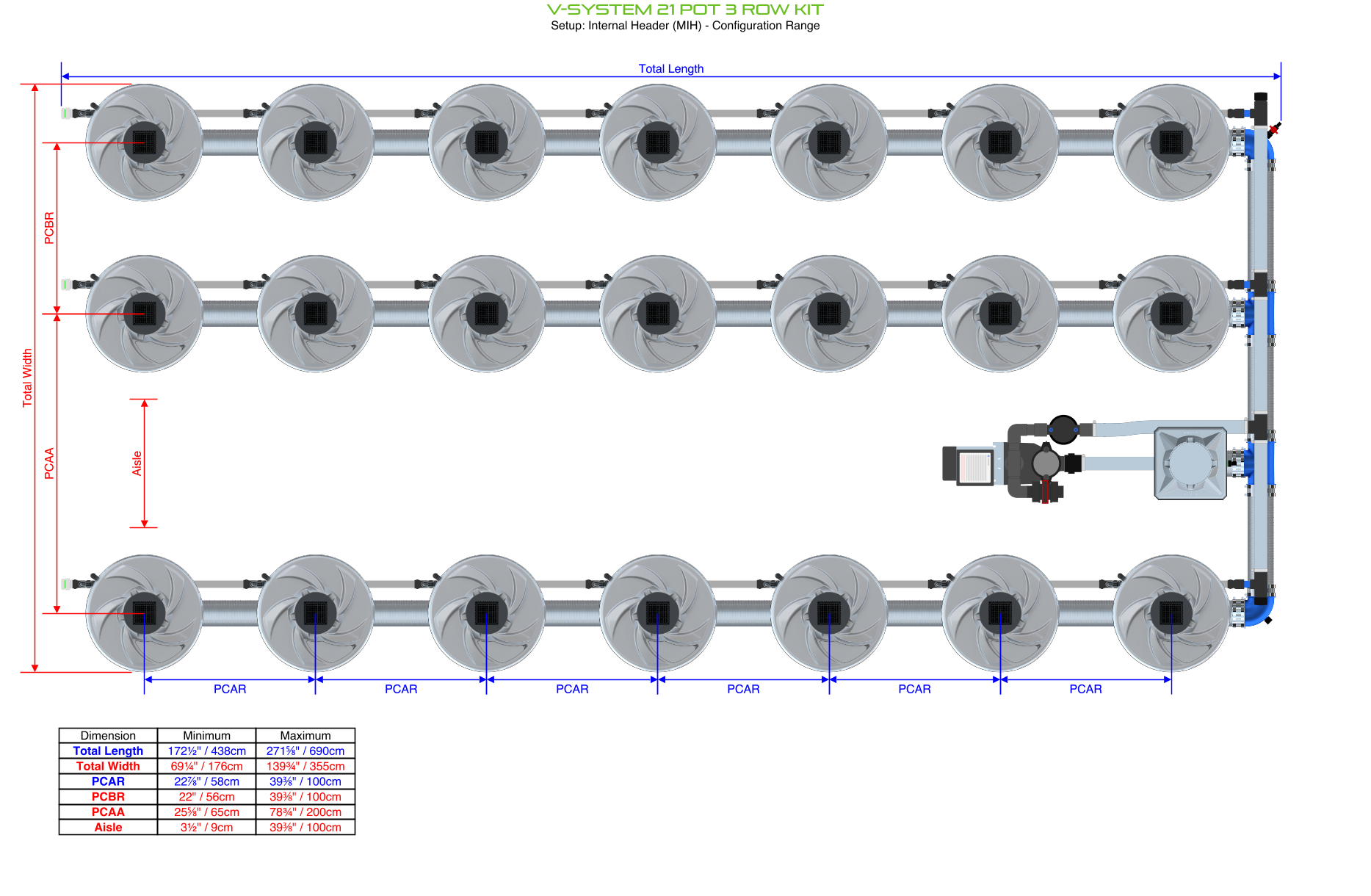

Minimum assembled size (can space pots more widely for a larger footprint):
Length: 14' 0.1" (168.1 inches / 4270 mm)
Width: 5' 9.3" (69.3 inches / 1760 mm)

Water Pump Included with the Kit:
Model: V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
Wattage: 1500 watts
Flow Rate: 5944 gal/hr (22500 L/hr)

Recommended water chiller minimum capacity: 528 gallons (2000 L)

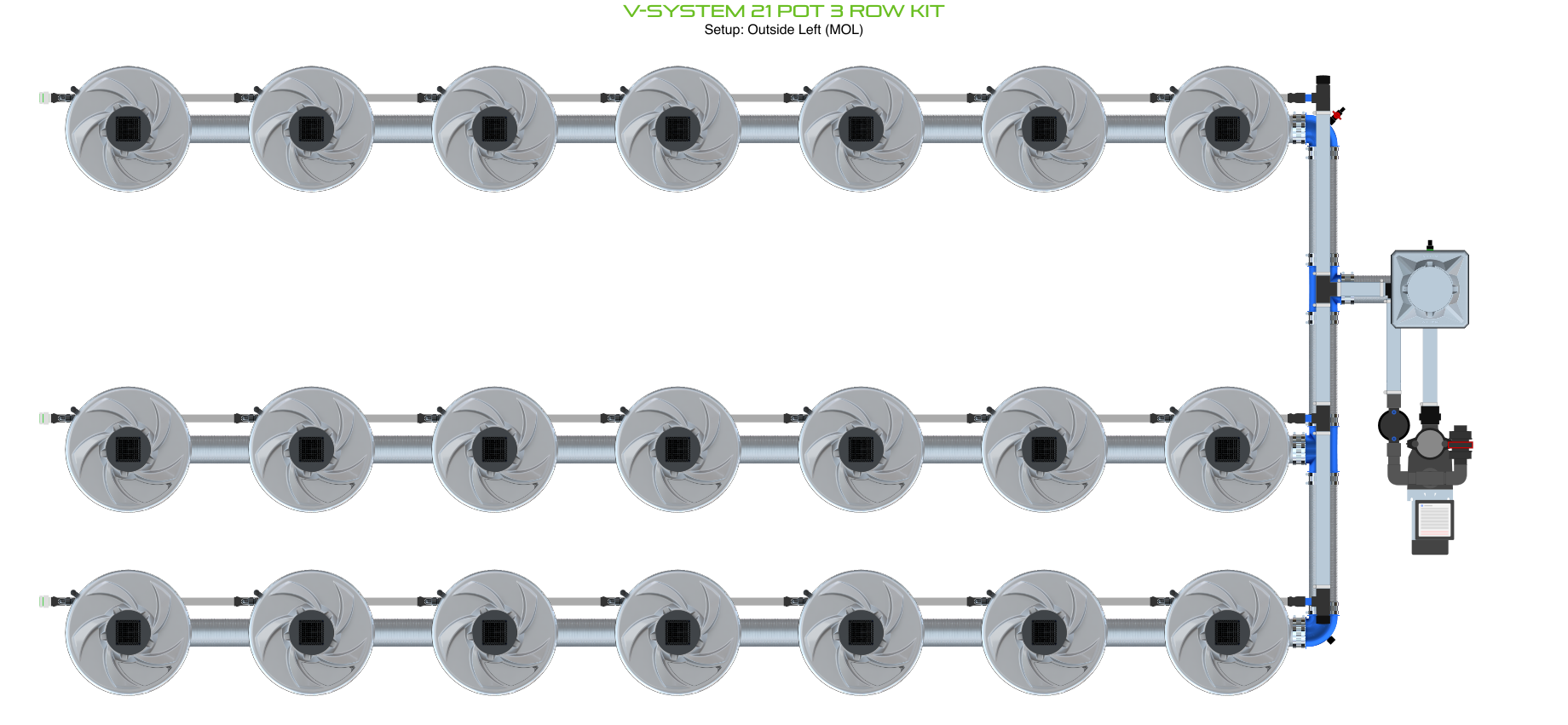

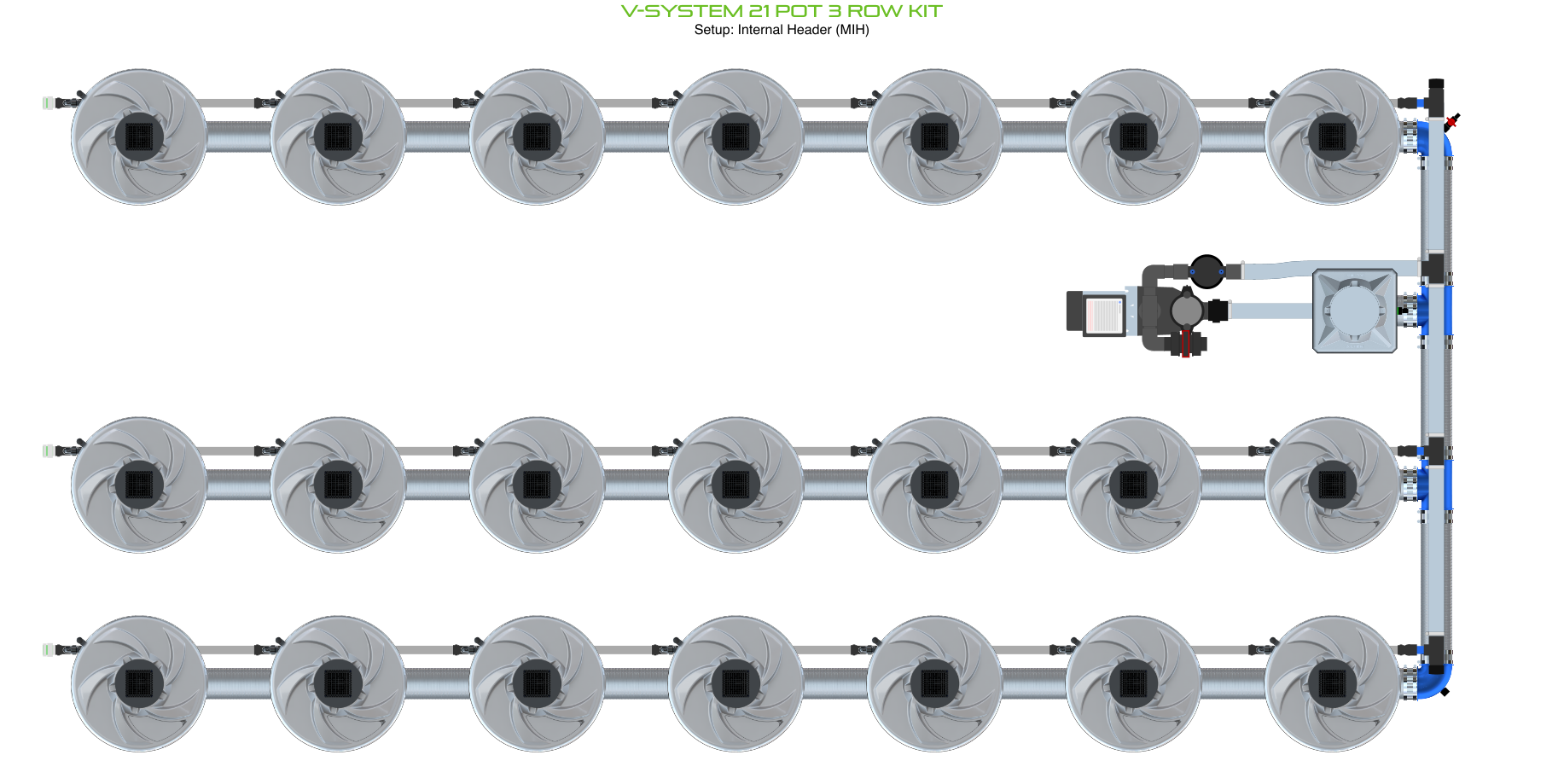

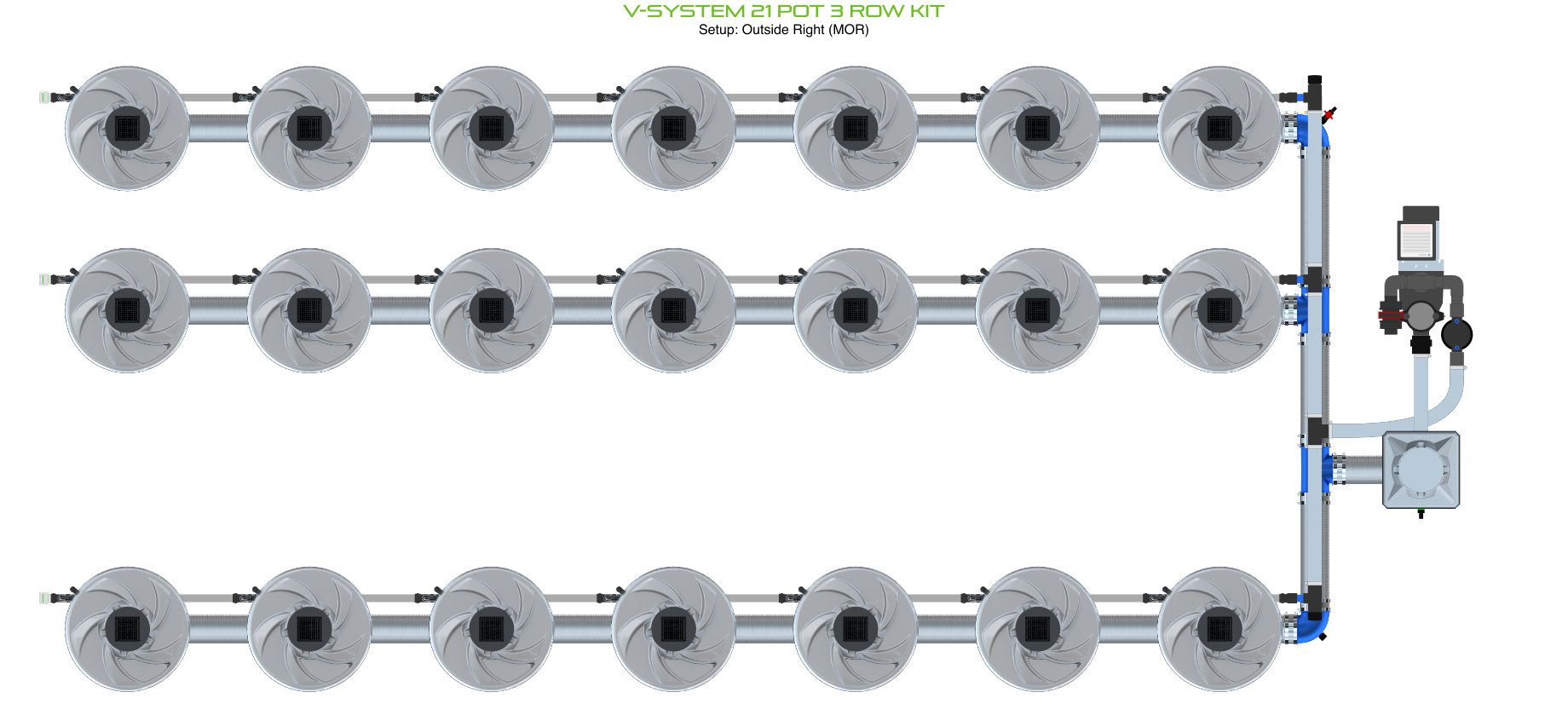

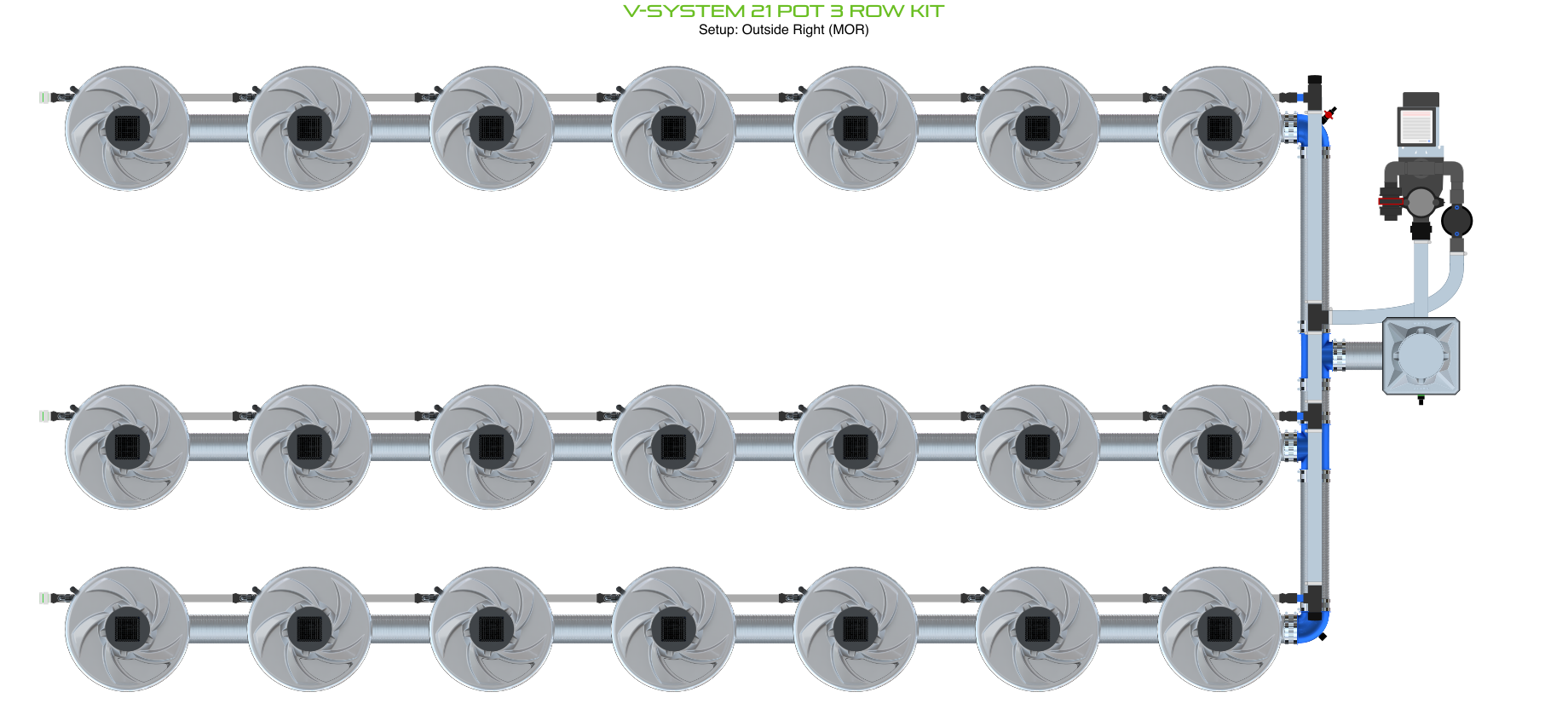

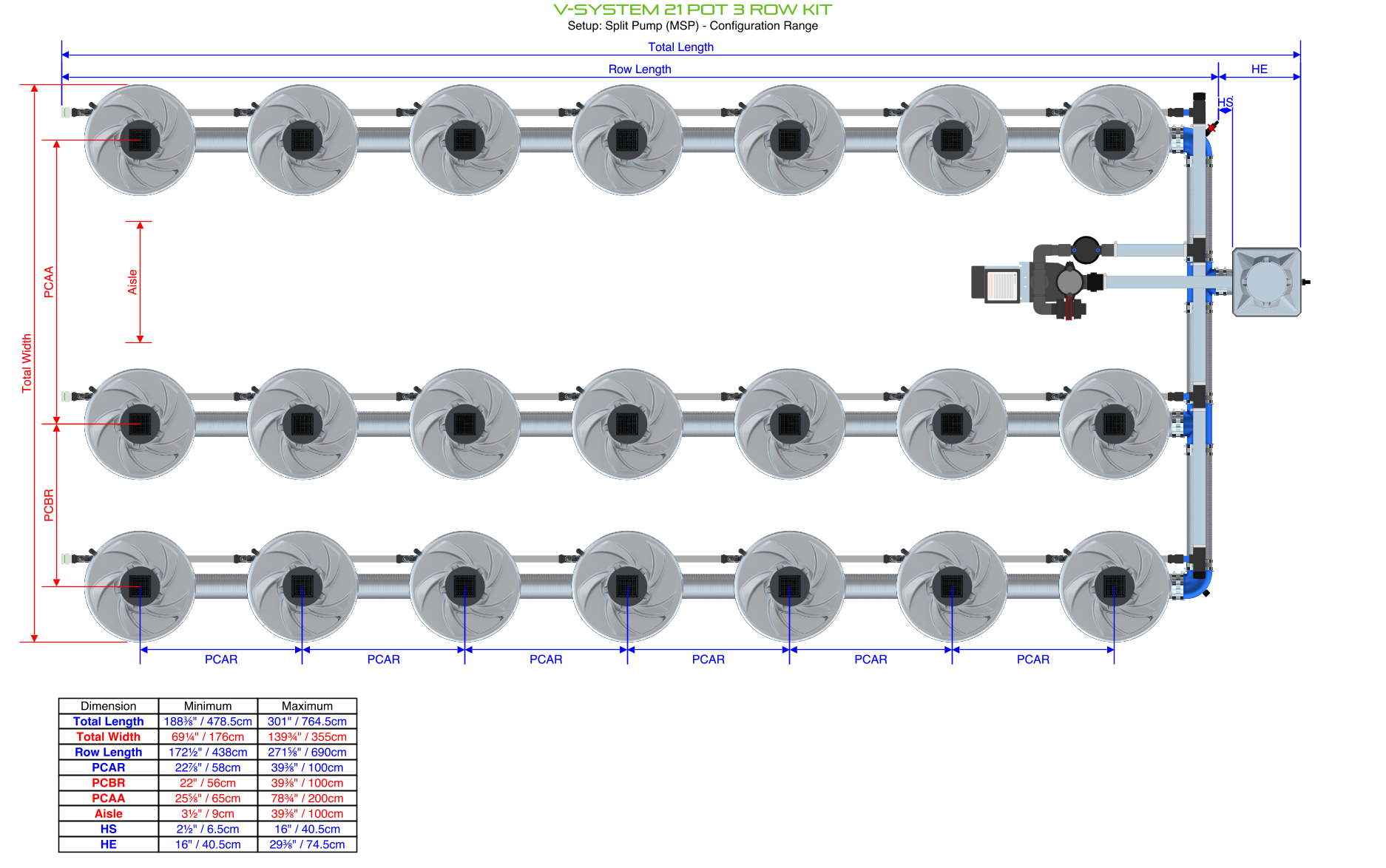

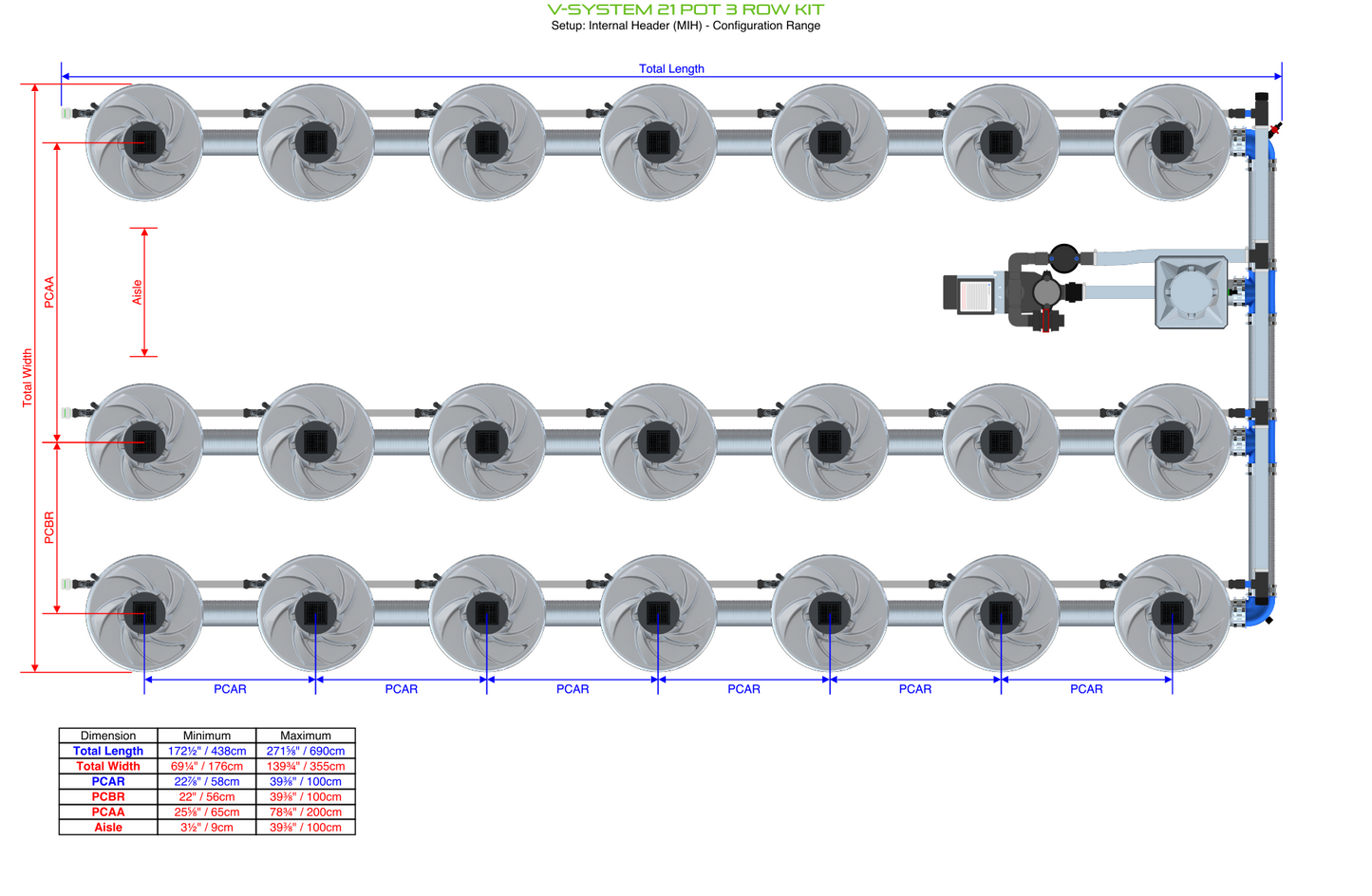

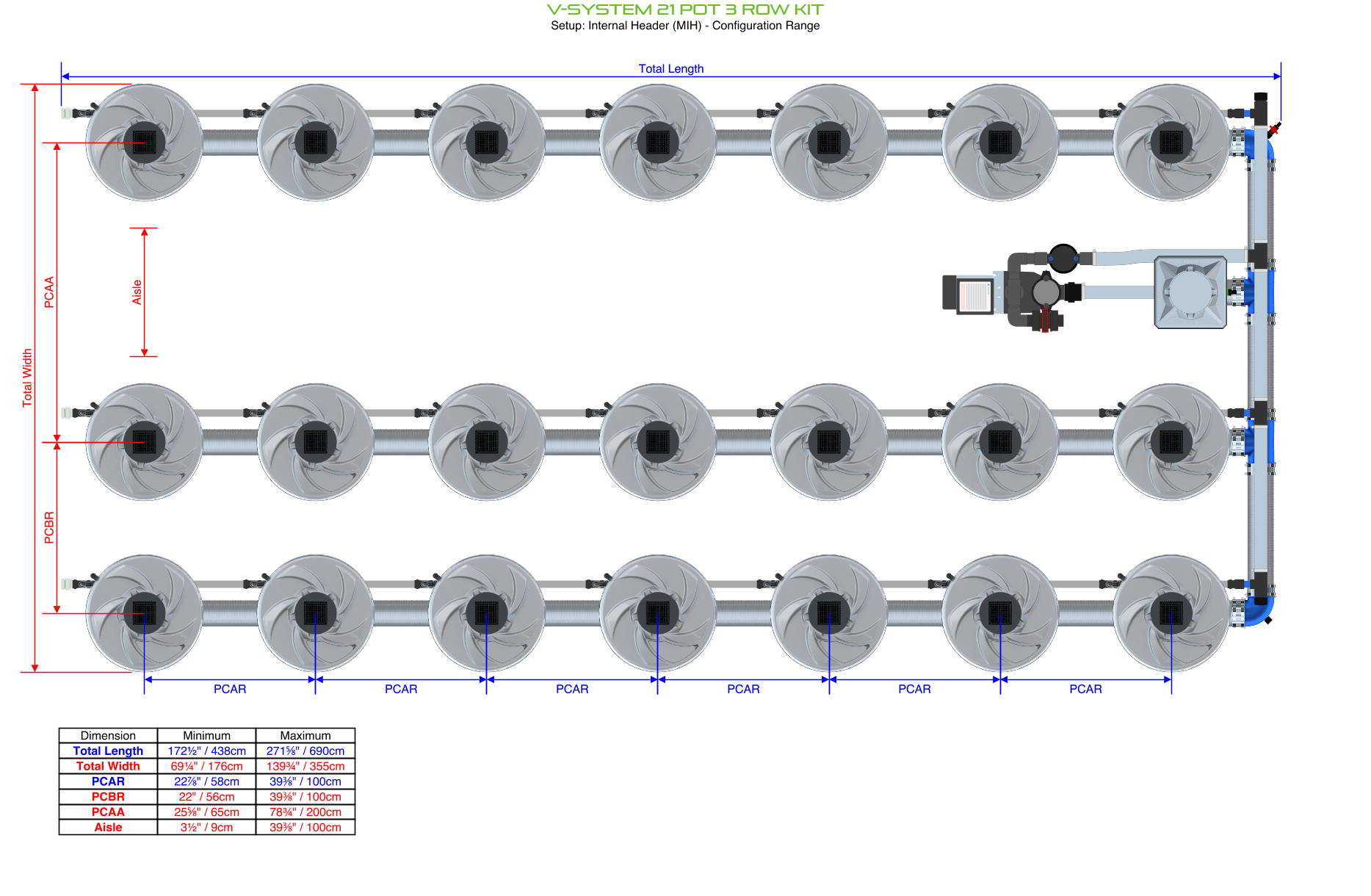

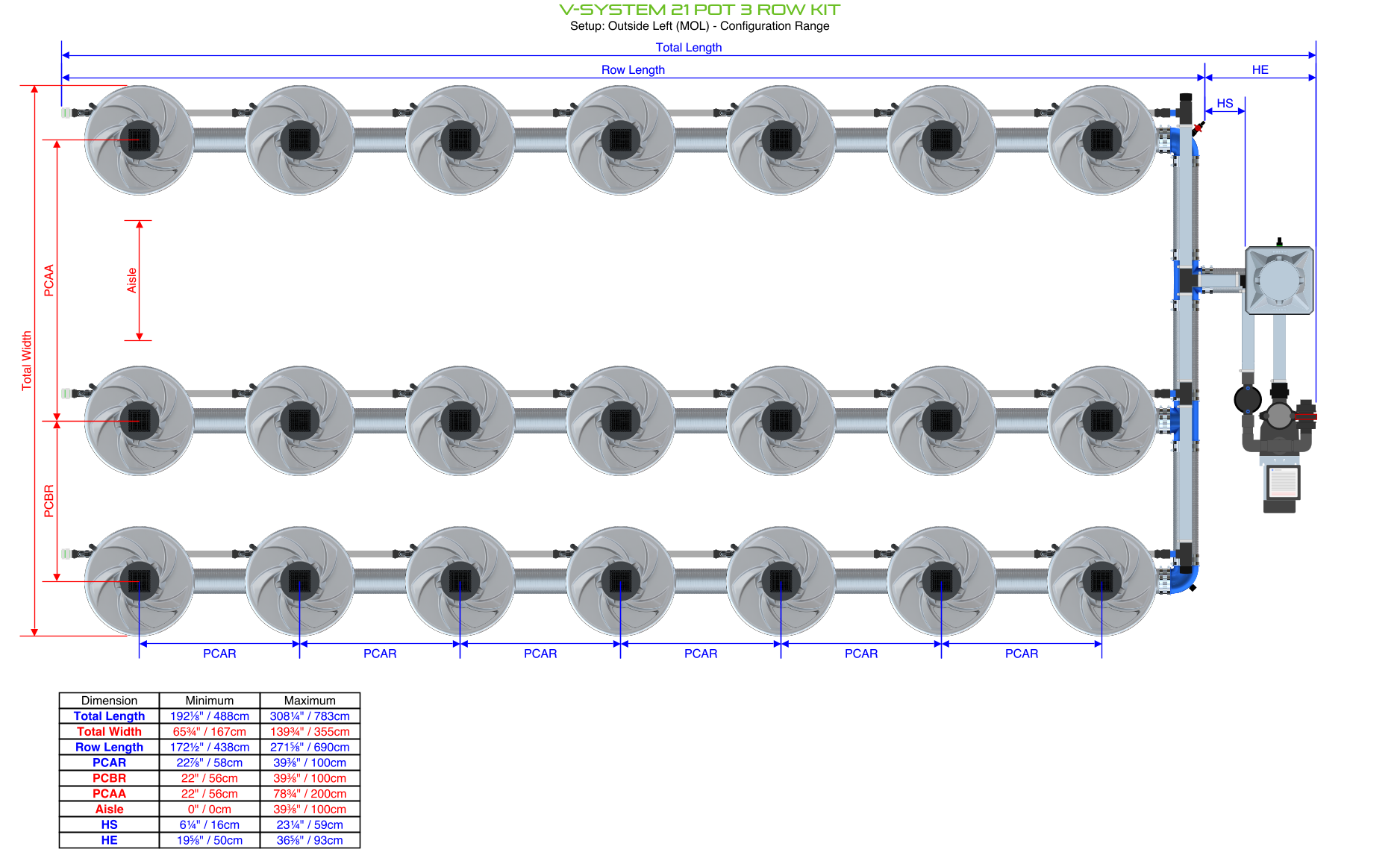

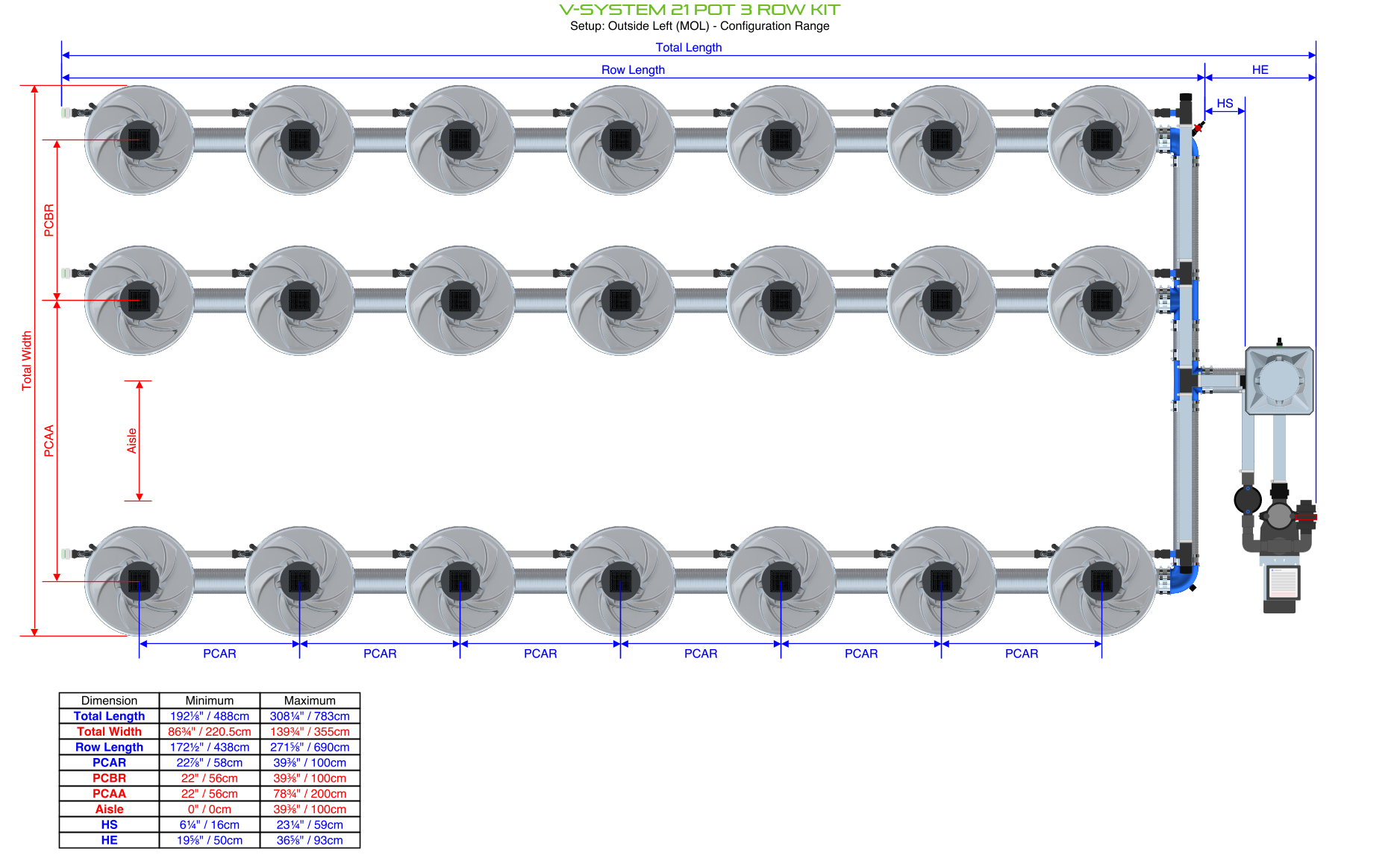

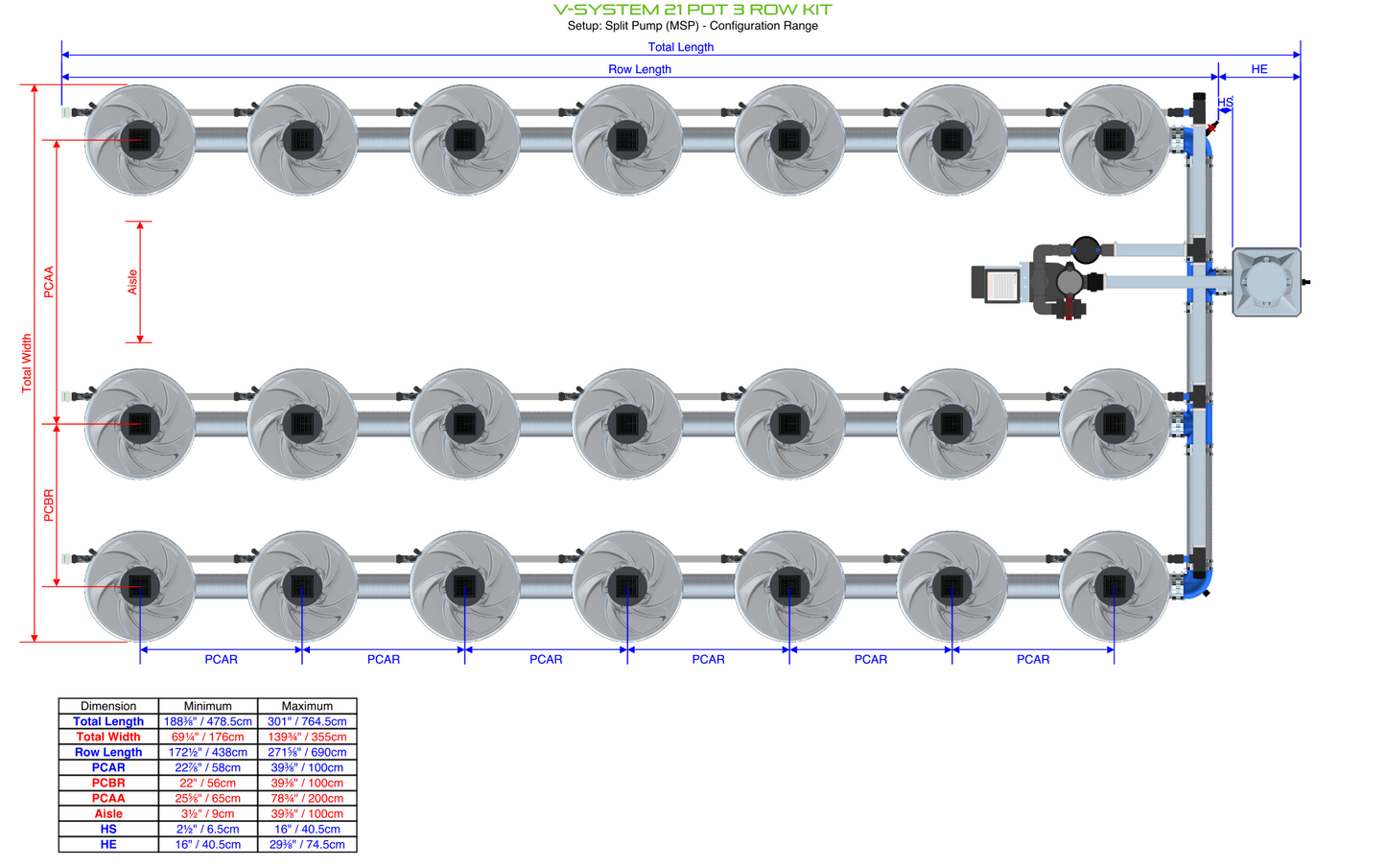

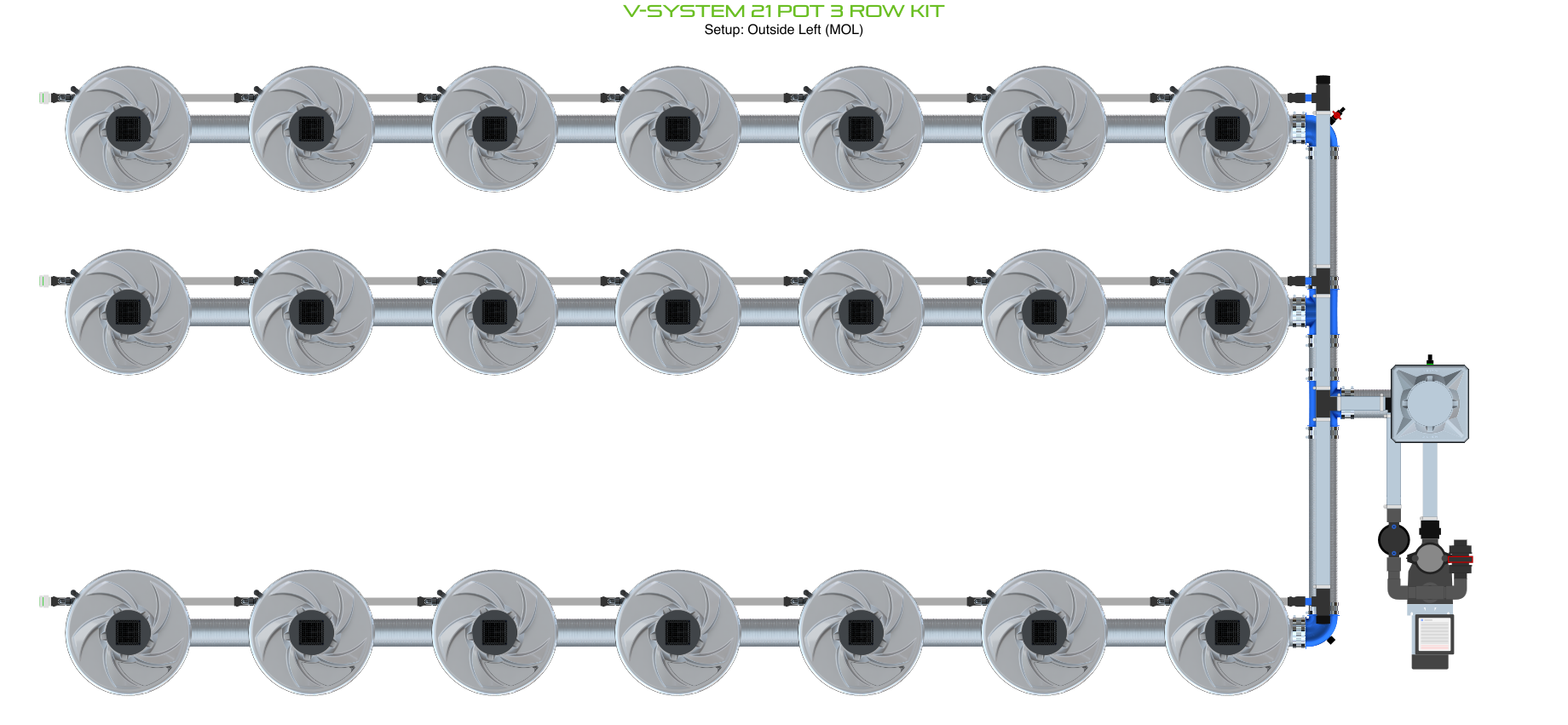

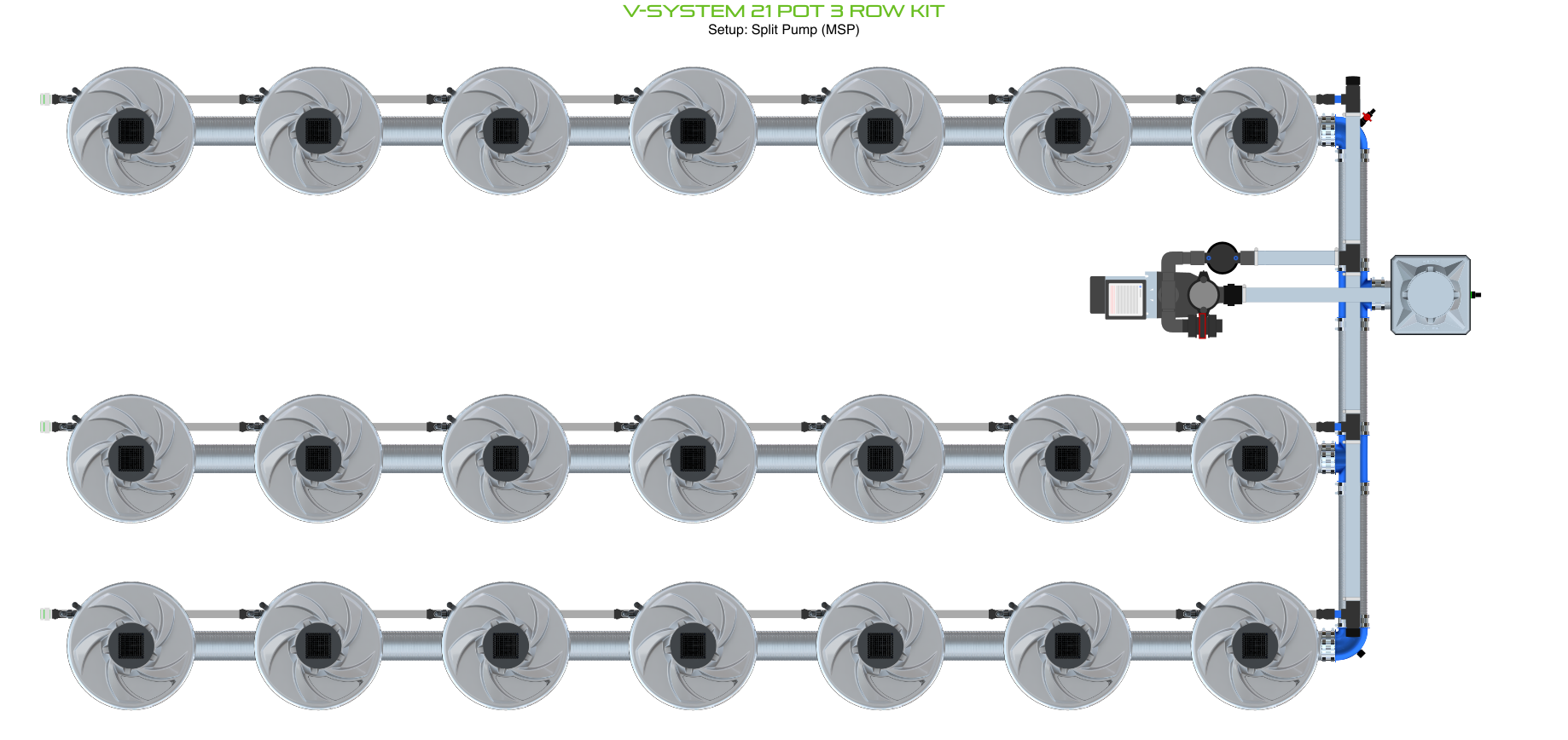

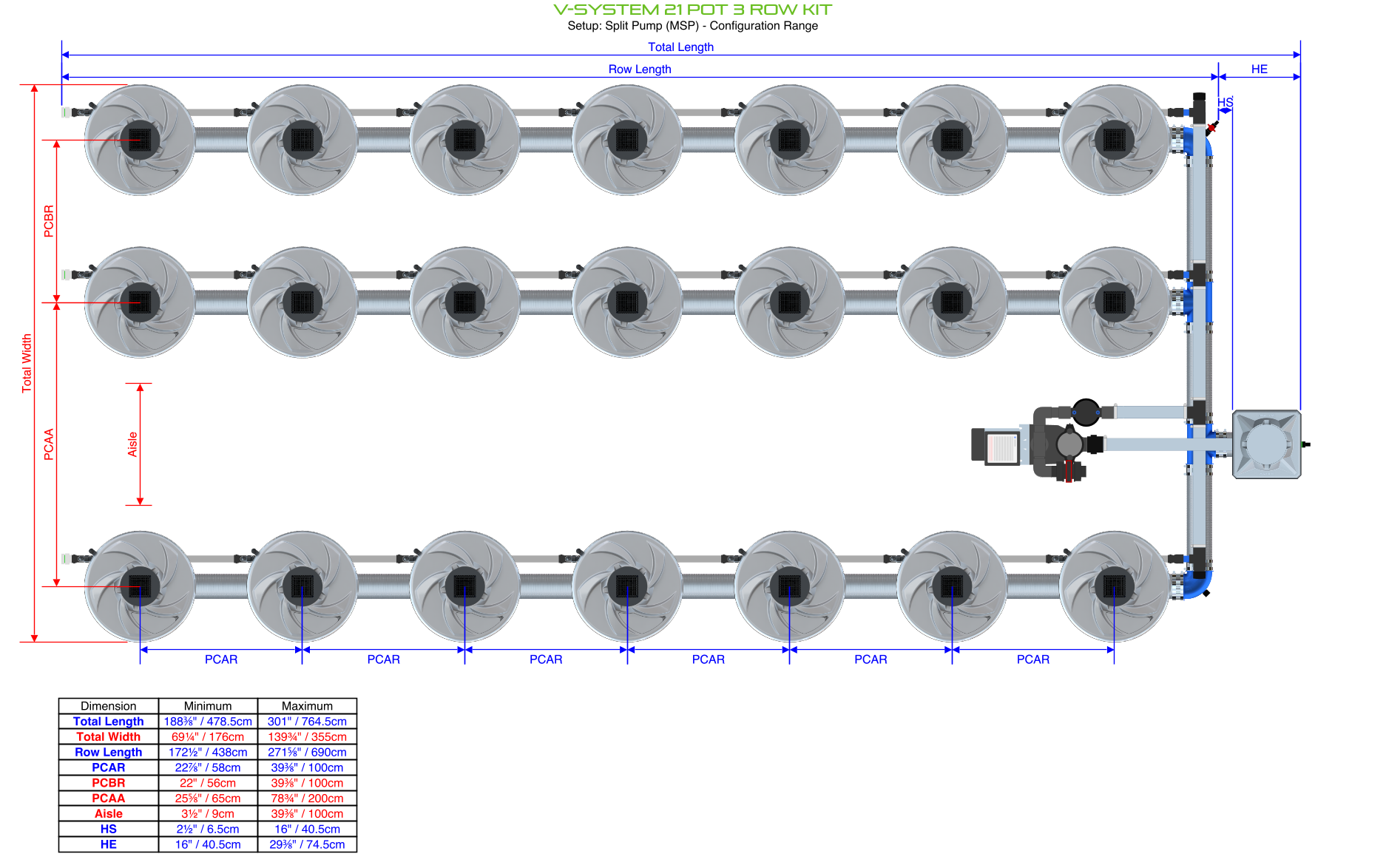

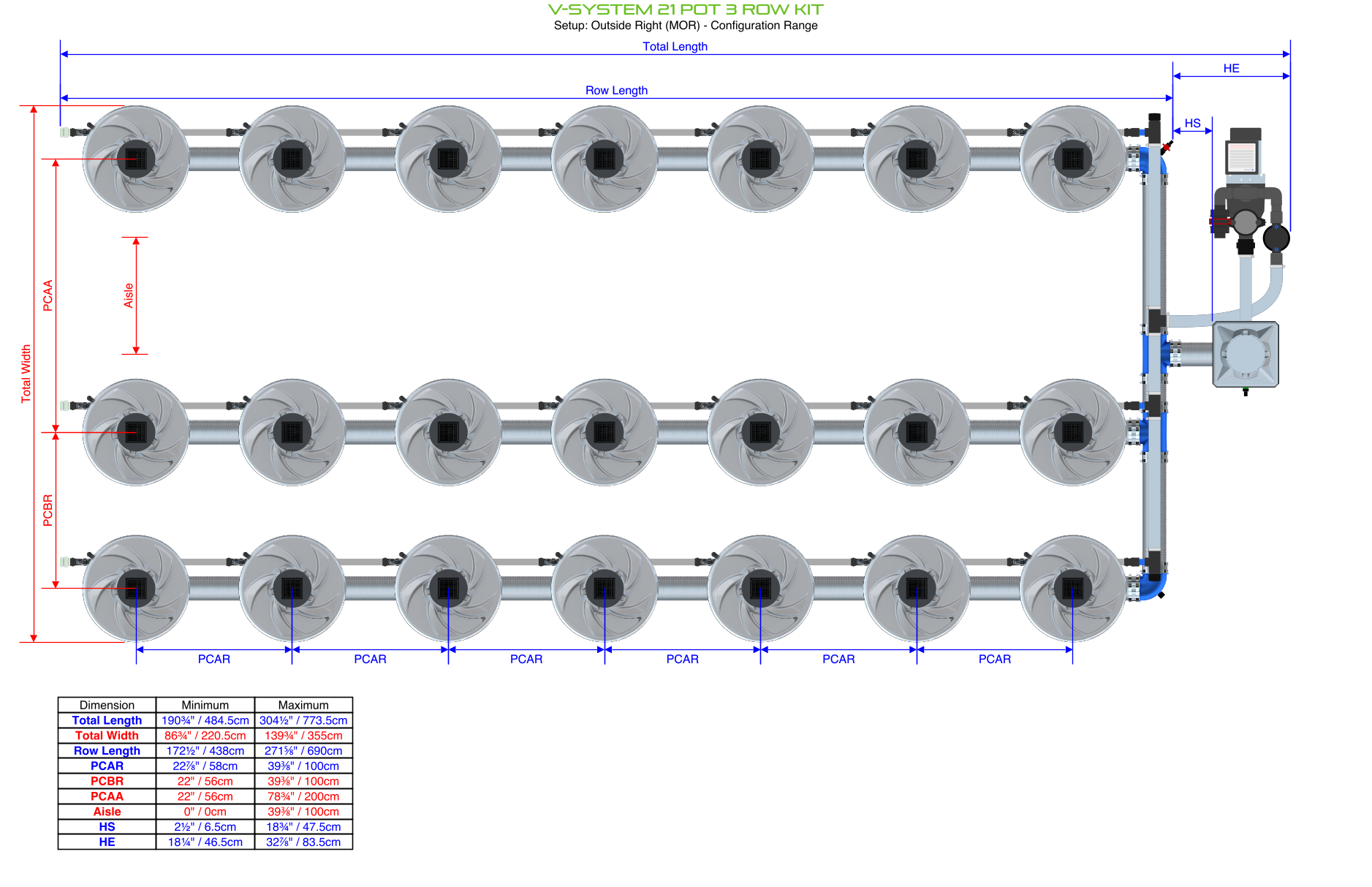

Kit Technical Drawing
Kit Assembly Instructions

The V-SYSTEM 21 Pot 3 Row Kit Includes:

1x V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
V-Pot 58L21x V-Pot 58L
V-Pot Base21x V-Pot Base
V-Pot Lid21x V-Pot Lid
V-Pot Lid Inspection Cover21x V-Pot Lid Inspection Cover
Square Net Pot21x Square Net Pot
V-Pot Clip21x V-Pot Clip
Air Filter for V-SYSTEM Venturi, 6mm21x Air Filter for V-SYSTEM Venturi, 6mm
Silencer for Venturi21x Silencer for Venturi
Venturi Air Inlet Pipe 6mm Blue (2X 4")21x Venturi Air Inlet Pipe 6mm Blue (2X 4")
Nut 5"22x Nut 5"
Washer 5" Green Silicone22x Washer 5" Green Silicone
5" Stainless Steel Clamp50x 5" Stainless Steel Clamp
Distribution Tee 50mm1x Distribution Tee 50mm
DM Push-Fit Elbow 28mm V-SYSTEM3x DM Push-Fit Elbow 28mm V-SYSTEM
DM Push-Fit Tee 28-15mm V-SYSTEM21x DM Push-Fit Tee 28-15mm V-SYSTEM
Drain Tap 1/2"-16mm Barb1x Drain Tap 1/2"-16mm Barb
Elbow 5" Barbed with Drain Point2x Elbow 5" Barbed with Drain Point
Elbow 5" Threaded Dual-Flow4x Elbow 5" Threaded Dual-Flow
Float Valve1x Float Valve
V-SYSTEM Header Pot 20L 50mm1x V-SYSTEM Header Pot 20L 50mm
Silver Lid1x Silver Lid
Header Pot Blank1x Header Pot Blank
Hosetail 16mm-3/4" Female Green1x Hosetail 16mm-3/4" Female Green
Pipe 28mm White Rigid 100cm Piece21x Pipe 28mm White Rigid 100cm Piece
Pipe 50mm Silver 100cm Piece5x Pipe 50mm Silver 100cm Piece
Pipe 5" Silver Spiral 80cm Piece23x Pipe 5" Silver Spiral 80cm Piece
Tee 5" Barbed2x Tee 5" Barbed
Tee Threaded 5" Dual-Flow18x Tee Threaded 5" Dual-Flow
Threaded Tank Connector 1"2x Threaded Tank Connector 1"
Vortex Pump Inlet Manifold 50mm1x Vortex Pump Inlet Manifold 50mm
1" Cap for Chiller Connections2x 1" Cap for Chiller Connections
Elbow 50mm Barbed1x Elbow 50mm Barbed
Terminal Manifold Left 50mm1x Terminal Manifold Left 50mm
Terminal Manifold Center 50mm1x Terminal Manifold Center 50mm
Terminal Manifold Right 50mm1x Terminal Manifold Right 50mm
28mm Insert for 28mm Rigid Pipe54x 28mm Insert for 28mm Rigid Pipe
28mm Push-Fit Stop End3x 28mm Push-Fit Stop End
Clamp Size 412x Clamp Size 4
8mm Screwdriver for 5" Clamp1x 8mm Screwdriver for 5" Clamp
Wrench 5"1x Wrench 5"
Wrench for Float Valve1x Wrench for Float Valve
8mm Socket for 5" Clamp1x 8mm Socket for 5" Clamp
Pipe Cutter 50mm1x Pipe Cutter 50mm
Silicone Grease - Food Grade6x Silicone Grease - Food Grade

Plus Local North American Customer Service, Stocking and Support
